VHK200W-DIN Series
VHK200W-DIN Series

VHK200W-DIN Series

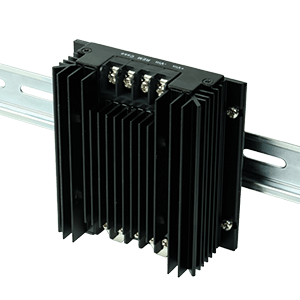

The VHK200W-DIN series is a high efficiency isolated DC-DC converter housed in a rugged DIN rail package designed for easy installation in control cabinets. Supporting a 4:1 input range, the series is ideal for battery-driven applications where charging and discharging conditions require an ultra-wide input range. All units also come standard with an integrated heat sink, providing improved thermal performance for challenging industrial environments.
Features
  • 4:1 input range
  • Single regulated output
  • Rugged metal enclosure with integrated heat sink
  • Remote on/off control
  • Output trim
  • Remote sense
  • Efficiency up to 89%
Specifications
  • Power (W): 200
  • Input Voltage Range (VDC): 10 ~ 75
  • Output Voltage (VDC): 12 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +85
  • Isolation (VDC): 1500
  • Isolated: Yes
  • RoHS Compliant: Yes
