VHK100W Series

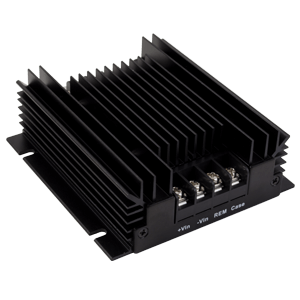

The VHK100W series is a rugged chassis mount DC-DC converter featuring an integrated heat sink for improved thermal performance. The aluminum heat sink allows the unit to operate at higher temperatures with a minimal amount of air flow. With an ultra-wide 4:1 input range, these high power DC-DC converters are ideal when being driven from a fluctuating device such as a battery which exhibits wide voltage swings during charging and discharging conditions.

Features

4:1 input range
Single regulated output
Rugged metal enclosure with integrated heat sink
Remote on/off control
Output trim
Remote sense
Efficiency up to 88%

Specifications

Power (W): 66 ~ 100
Input Voltage Range (VDC): 9 ~ 75
Output Voltage (VDC): 3.3 ~ 48
Operating Temperature Range (ºC): -40 ~ +85
Isolation (VDC): 1500
Isolated: Yes
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support
