VFK600 Series

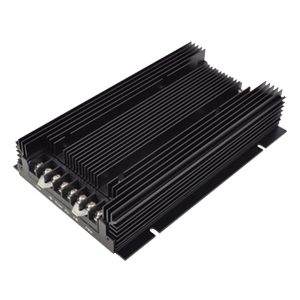

The VFK600 series is a rugged, high density chassis mount DC-DC converter featuring an integrated heat sink for improved thermal performance. The aluminum heat sink allows the unit to operate at higher temperatures with a minimal amount of air flow. Featuring load share capability and efficiency up to 92%, these DC-DC converters are ideal for high power industrial applications where rugged performance and low energy consumption are priorities.

Features

2:1 input range
Single regulated output
Rugged metal enclosure with integrated heat sink
Remote on/off control
Output trim
Remote sense
Load share capability
Efficiency up to 92%

Specifications

Power (W): 600 ~ 700
Input Voltage Range (VDC): 18 ~ 75
Output Voltage (VDC): 12 ~ 48
Operating Temperature Range (ºC): -40 ~ +85
Isolation (VDC): 1500
Isolated: Yes
RoHS Compliant: Yes
