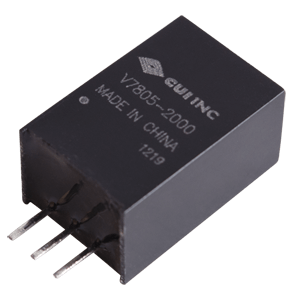

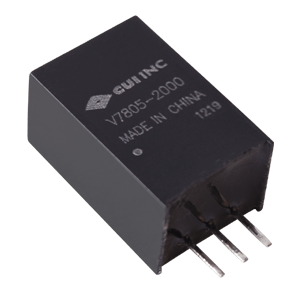

V78-2000 Series
Specifications
- Power (W): 5 ~ 13
- Input Voltage Range (VDC): 4.75 ~ 18
- Output Voltage (VDC): 2.5 ~ 6.5
- Isolation (VDC): 0
- RoHS Compliant: Yes
Features
- 2 A
- 2 ~ 6 Vdc output options
- 18 Vdc max input voltage
- -40 to +85°C temperature range
- Pin compatible with LM78XX linear regulators
- Wide input voltage range
- Low ripple and noise
- Efficiency up to 95%
- UL94-V0 package material
