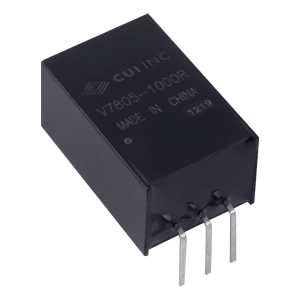

V78-1000R Series
V78-1000R Series
V78-1000R Series
Discontinued

V78-1000R Series

This product has been discontinued. If you have any questions or concerns, please contact our sales team.
View Recommended Replacements

Recommended Replacements

P78A-1000 Series

P78A-1000 Series

The compact P78A-1000 non-isolated DC-DC converter series has been designed to offer a high performance alternative to linear regulators. Utilizing switching technology, the series is footprint compatible with TO-220 package LM78XX model regulators. Unlike linear regulators, the P78 dc switching regulator does not require a heat sink, making it ideal for applications where board space is at a premium and energy efficiency is a concern.

View Product
Features
  • 1 A
  • 3 ~ 15 Vdc output options
  • 32 Vdc max input voltage
  • -40 to +85°C temperature range
  • Pin compatible with LM78XX linear regulators
  • Wide input voltage range
  • Low ripple and noise
  • Efficiency up to 97%
  • UL94-V0 package material
Specifications
  • Power (W): 3.3 ~ 15
  • Input Voltage Range (VDC): 4.75 ~ 32
  • Output Voltage (VDC): 3.3 ~ 15
  • Isolation (VDC): 0
  • RoHS Compliant: Yes
