SRPE-02E1A Series

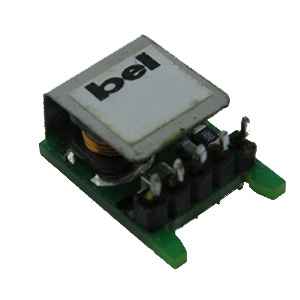

The Bel SRPE-02E1A0 is part of the non-isolated DC-DC converter Power Module series. The modules use a SMD package. These converters are available in a range of output voltages from 0.6 ~ 5.5 VDC over a wide range of input voltage (VIN = 5.5 ~ 13.2 VDC). The efficiency is typically 83.7% at 3.3 Vout (Vin = 12 VDC) at full load.
Features
  • Output Voltage Trim
  • Single
  • Type input Voltage: 12 V
Specifications
  • Power (W): 8
  • Input Voltage Range (VDC): 5.5 ~ 13.2
  • Output Voltage (VDC): 0.6 ~ 5.5
  • Operating Temperature Range (ºC): 0 ~ +50
  • Dimensions L x W x H (mm): 10.41 x 12.7 x 9.65
  • Dimensions L x W x H (in): 0.41 x 0.5 x 0.38
  • Isolation (VDC): 0
  • Isolated: No
  • Safety Approvals: UL
  • RoHS Compliant: Yes
