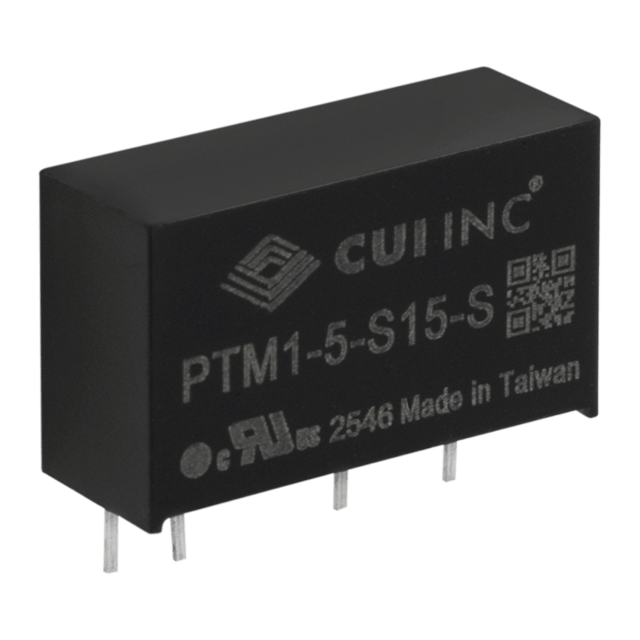

PTM1-S Series
22 Products
| Product | 3D Model | S & F | Power (W) | Input Voltage Range (VDC) | Output Voltage (VDC) | Output Current (A) | Mounting Type | Isolated | Dimensions L x W x H (mm) |
|---|---|---|---|---|---|---|---|---|---|
PTM1-5-S3-SIn stock
|
|
|
|
1 | 4.5 ~ 5.5 | 3.3 | 0.303 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-5-S5-SIn stock
|
|
|
|
1 | 4.5 ~ 5.5 | 5 | 0.2 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-5-S12-SIn stock
|
|
|
|
1 | 4.5 ~ 5.5 | 12 | 0.084 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-5-S15-SIn stock
|
|
|
|
1 | 4.5 ~ 5.5 | 15 | 0.067 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-5-D5-SIn stock
|
|
|
|
1 | 4.5 ~ 5.5 |
5/ |
0.1/ |
Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-5-D12-SIn stock
|
|
|
|
1 | 4.5 ~ 5.5 |
12/ |
0.042/ |
Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-5-D15-SIn stock
|
|
|
|
1 | 4.5 ~ 5.5 |
15/ |
0.034/ |
Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-12-S3-SIn stock
|
|
|
|
1 | 10.8 ~ 13.2 | 3.3 | 0.303 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-12-S5-SIn stock
|
|
|
|
1 | 10.8 ~ 13.2 | 5 | 0.2 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-12-S12-SIn stock
|
|
|
|
1 | 10.8 ~ 13.2 | 12 | 0.084 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-12-S15-SIn stock
|
|
|
|
1 | 10.8 ~ 13.2 | 15 | 0.067 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-12-D5-SIn stock
|
|
|
|
1 | 10.8 ~ 13.2 |
5/ |
0.1/ |
Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-12-D12-SIn stock
|
|
|
|
1 | 10.8 ~ 13.2 |
12/ |
0.042/ |
Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-12-D15-SIn stock
|
|
|
|
1 | 10.8 ~ 13.2 |
15/ |
0.034/ |
Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-15-S5-SIn stock
|
|
|
|
1 | 13.5 ~ 16.5 | 5 | 0.2 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-24-S3-SIn stock
|
|
|
|
1 | 21.6 ~ 26.4 | 3.3 | 0.303 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-24-S5-SIn stock
|
|
|
|
1 | 21.6 ~ 26.4 | 5 | 0.2 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-24-S12-SIn stock
|
|
|
|
1 | 21.6 ~ 26.4 | 12 | 0.084 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-24-S15-SIn stock
|
|
|
|
1 | 21.6 ~ 26.4 | 15 | 0.067 | Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-24-D5-SIn stock
|
|
|
|
1 | 21.6 ~ 26.4 |
5/ |
0.1/ |
Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-24-D12-SIn stock
|
|
|
|
1 | 21.6 ~ 26.4 |
12/ |
0.042/ |
Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
PTM1-24-D15-SIn stock
|
|
|
|
1 | 21.6 ~ 26.4 |
15/ |
0.034/ |
Through Hole Mount | Yes | 19.7 x 7.1 x 11.5 |
Loading more products . . .
Technical Resources & Documents
Drawings & Datasheets
Safety Certificates
Tech Resources
Specifications
- Power (W): 1
- Input Voltage Range (VDC): 4.5 ~ 26.4
- Output Voltage (VDC): 3.3 ~ 15
- Operating Temperature Range (ºC): -40 ~ +100
- Standard Footprint: SIP7
- Isolation (VDC): 6000
- Isolated: Yes
- Safety Standards: 60601, 62368
- Safety Approvals: CE, UKCA, UL/cUL
- RoHS Compliant: Yes
Features
- Industry standard SIP package
- Single/dual regulated outputs
- 6,000 Vdc isolation voltage
- Reinforced insulation, 300 Vac working voltage
- Continuous short circuit protection (SCP)
