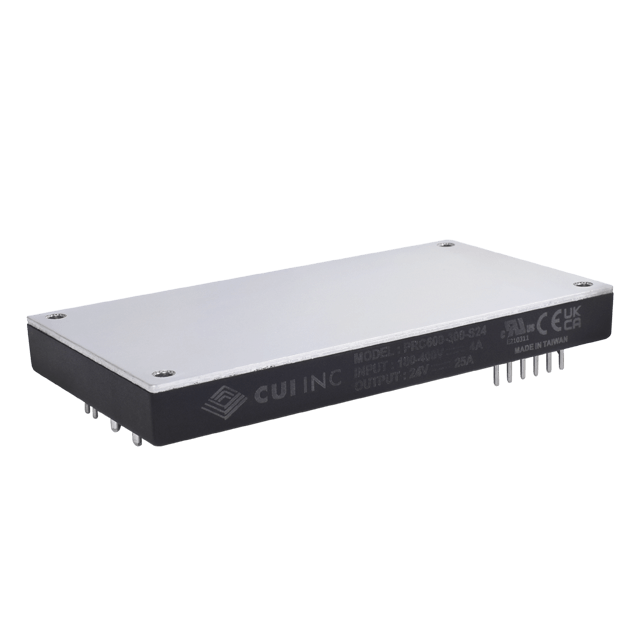

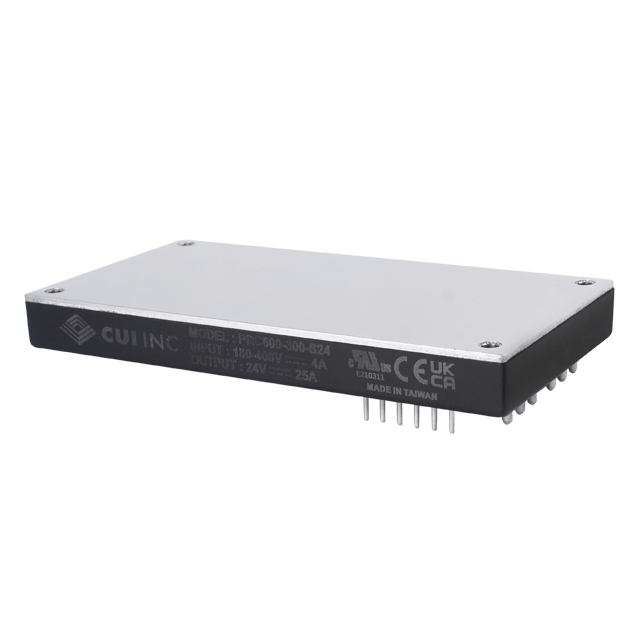

The PRC600 Series is a regulated 600 W DC-DC converter designed to meet the needs of commercial, railway, and other industrial applications. All models are EN 61373 and EN 45545-2 compliant while offering a host of features, including remote on/off control, 4200 Vdc isolation, output current sharing, and a wide operating temperature range of -40 ~ 100 ÂșC.
Features
  • 2:1 input range
  • Single regulated output
  • Output Voltage Trim
  • Output current sharing
  • EN 61373 and EN 45545-2 compliant
Specifications
  • Power (W): 600
  • Input Voltage Range (VDC): 180 ~ 400
  • Output Voltage (VDC): 12 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +100
  • Standard Footprint: Full Brick
  • Isolation (VDC): 4200
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
