3D View

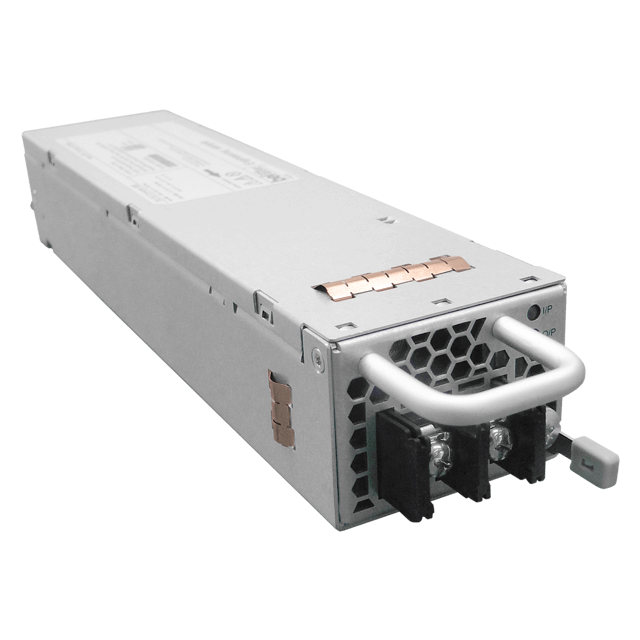

TFS1500-12-054ND
Front End DC-DC Converters
Front End DC-DC Power Supply | Power 1500 W | Output 12 VDC, 125 A | Input -40 ~ -72 VDC | Normal Airflow
Stock Check
Country - USA
Features & Specifications
| Power (W) | 1500 |
| Input Voltage Range (VDC) | -40 ~ -70 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 125 |
| Standby Output Voltage (VDC) | Programmable 3.3/5 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -5 ~ +65 |
| Dimensions L x W x H (mm) | 228.6 x 54.5 x 40 |
| Dimensions L x W x H (in) | 9 x 2.14 x 1.57 |
| Mounting Type | Rack Mount |
| Market | Networking & Data Centers |
| Isolated | Yes |
| Airflow | Normal |
| Safety Standards | 62368 |
| Safety Approvals | CB, CQC, CSA, EAC, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
