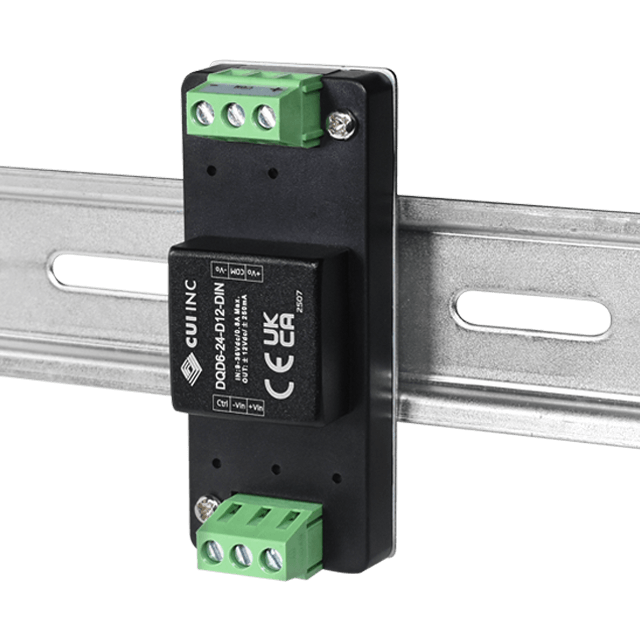

DQD6-DIN Series

The DQD6-DIN series is a 6 W DC-DC converter offering 1500 VDC isolation. Housed in a DIN-rail package and carrying a -40°C ~ 85°C operating temperature range, the series is ideal for use in harsh environments including factory automation and industrial control applications.

Features

Single and dual regulated outputs
Remote on/off control
1,500 VDC isolation
Over current protection (OCP)
Short circuit protection (SCP)
Over voltage protection (OVP)
Input under voltage protection (UVLO)

Specifications

Power (W): 4.95 ~ 6
Input Voltage Range (VDC): 9 ~ 75
Output Voltage (VDC): 3.3 ~ 40
Operating Temperature Range (ºC): -40 ~ +85
Dimensions L x W x H (mm): 76 x 31.5 x 26
Dimensions L x W x H (in): 2.99 x 1.24 x 1.023
Standard Footprint: 1" x 1"
Isolation (VDC): 1500
Isolated: Yes
Safety Standards: 62368
Safety Approvals: CE, UKCA
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support
