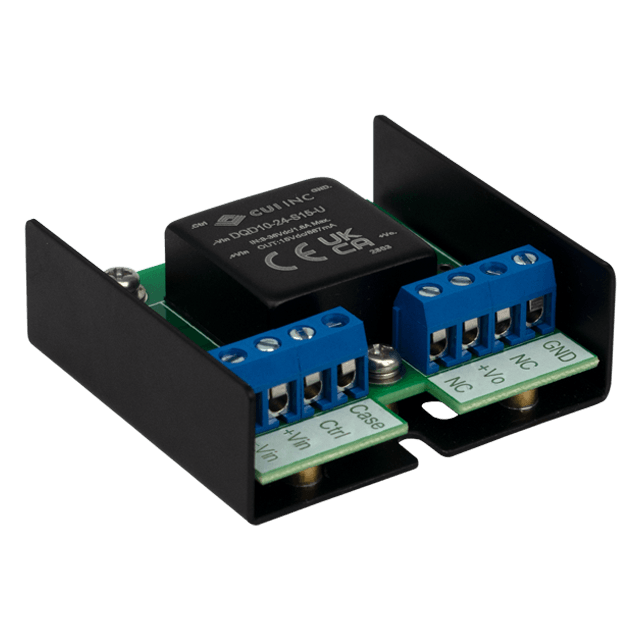

DQD10-U Series
Specifications
- Power (W): 7.92 ~ 10
- Input Voltage Range (VDC): 9 ~ 75
- Output Voltage (VDC): 3.3 ~ 24
- Operating Temperature Range (ºC): -40 ~ +85
- Dimensions L x W x H (mm): 55 x 52.3 x 19
- Dimensions L x W x H (in): 2.165 x 2.059 x 0.748
- Isolation (VDC): 1600
- Isolated: Yes
- Safety Standards: 62368
- Safety Approvals: CE, UKCA
- RoHS Compliant: Yes
Features
- Single and dual regulated outputs
- Remote on/off control
- Efficiency up to 87%
- Over current protection (OCP)
- Short circuit protection (SCP)
- Over voltage protection (OVP)
- Input under voltage protection (UVLO)
