VOF-70E Series

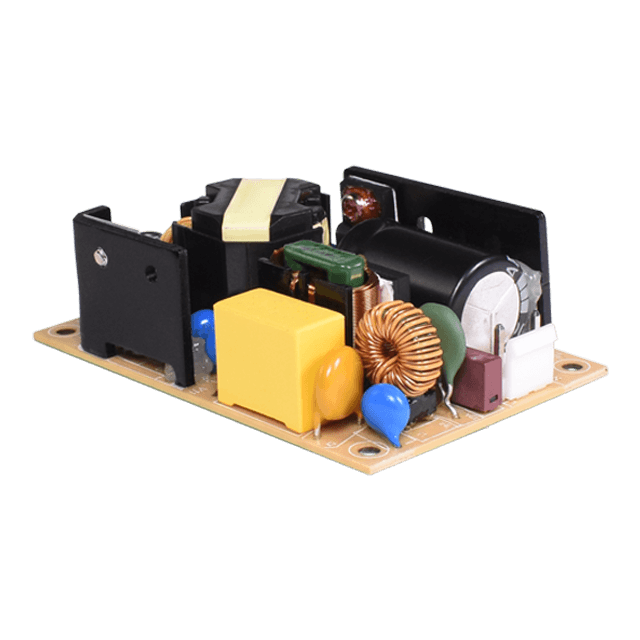

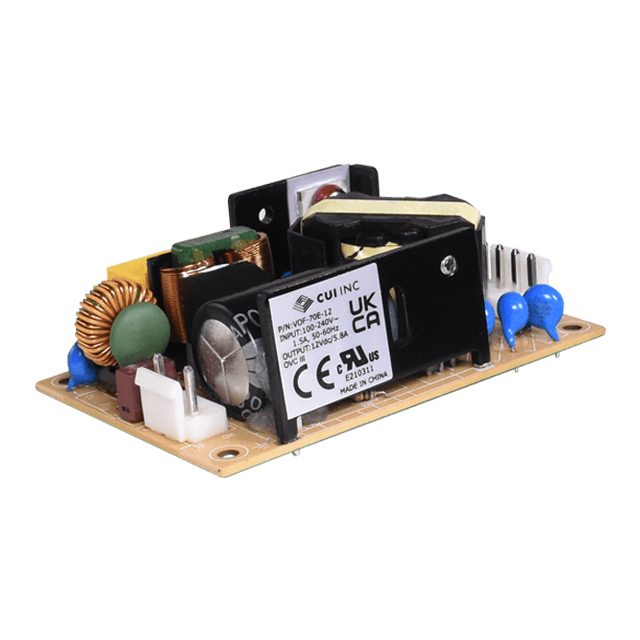

The VOF-70E series is an open-frame AC-DC power supply housed in a compact 2” x 3” chassis-mount package. These models feature a universal input voltage range, a wide operating temperature, and Class B emissions. The VOF's efficient performance and compact size make them an ideal solution for a range of consumer, industrial, and ICT applications.
Features
  • Class B emissions
  • No-load power consumption < 0.15 W
  • Class I and Class II
  • OVC III
  • 5000 meter operating altitude
Specifications
  • Power (W): 50 ~ 70
  • Input Voltage Range (VAC): 85 ~ 264
  • Output Voltage (VDC): 5 ~ 48
  • Operating Temperature Range (ºC): -30 ~ +80
  • Cooling Type: Convection
  • Dimensions L x W x H (mm): 76.2 x 50.8 x 27.1
  • Dimensions L x W x H (in): 3 x 2 x 1.067
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
