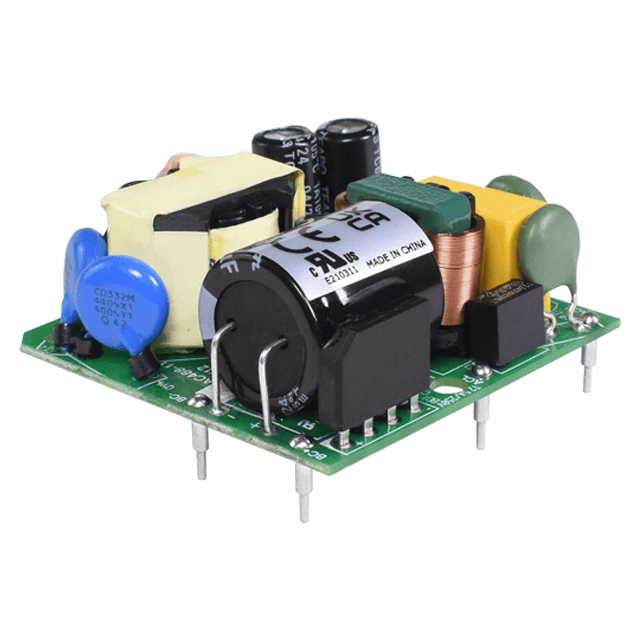

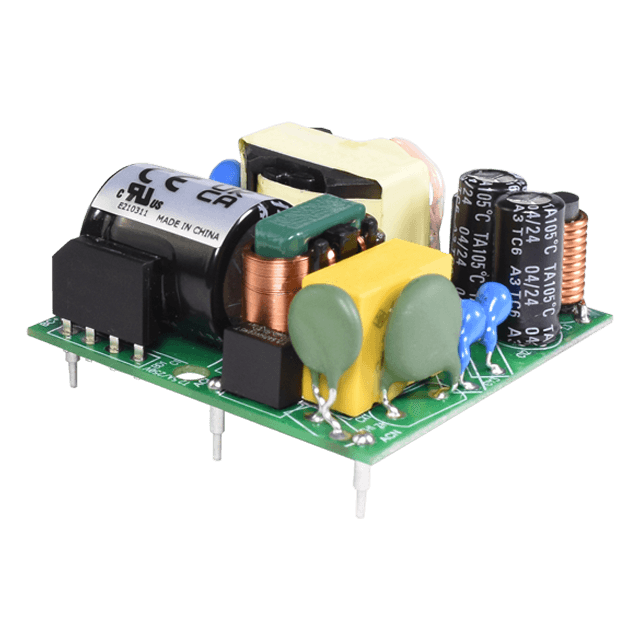

VOF-40E-P Series
Specifications
- Power (W): 30 ~ 40
- Input Voltage Range (VAC): 90 ~ 264
- Output Voltage (VDC): 5 ~ 48
- Operating Temperature Range (ºC): -40 ~ +85
- Cooling Type: Convection
- Dimensions L x W x H (mm): 50.8 x 50.8 x 25.6
- Dimensions L x W x H (in): 2 x 2 x 1.01
- Safety Standards: 62368
- Safety Approvals: CE, UKCA, UL/cUL
- RoHS Compliant: Yes
Features
- Class B emissions
- Class II
- No-load power consumption < 0.15 W
- 5000 meter operating altitude
- 2x peak load capability
Loading more products . . .
Compatible Products with VOF-40E-P Series
Related Products
VOF-40E Series
The VOF-40E series is a family of open-frame AC-DC power supplies housed in a compact 2” x 3” chassis-mount package. These models feature a universal input voltage range, up to 48 VDC rated output voltage, and 2x peak load capability. The VOF's efficient design, compact size and rock-solid reliability make these power supplies the ideal solution for a range of industrial and ITE applications.
View Product
