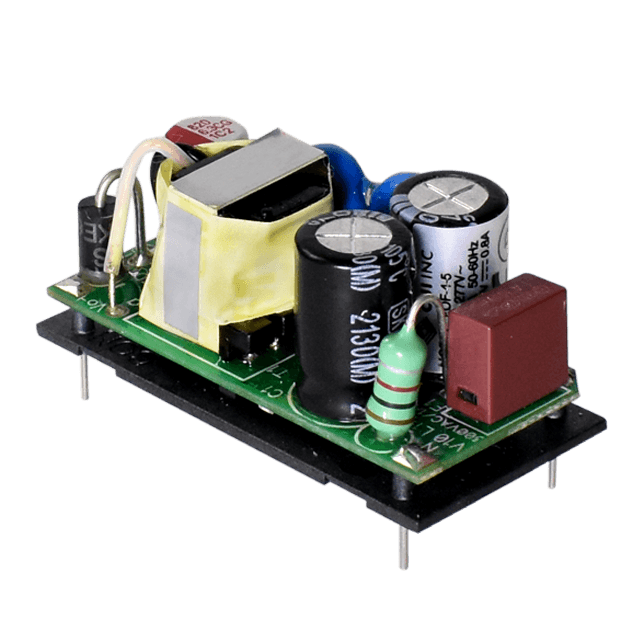

VOF-4 Series

The VOF-4 series is a family of open frame AC-DC power supplies housed in a compact board mount package. Featuring a wider operating temperature range, no-load power consumption, and an operating altitude of up to 5,000m, these 4 W open frame modules are ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.

Features

Operating altitude up to 5000m
Over Voltage Category OVC II and OVC III
No-load power consumption < 0.075 W
Efficiency up to 82%

Specifications

Power (W): 4
Input Voltage Range (VAC): 85 ~ 305
Output Voltage (VDC): 3.3 ~ 24
Operating Temperature Range (ºC): -40 ~ +80
Cooling Type: Convection
Dimensions L x W x H (mm): 39.5 x 19.4 x 18.3
Dimensions L x W x H (in): 1.56 x 0.76 x 0.72
Safety Standards: 62368
Safety Approvals: CE, UKCA
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support
