VOF-4-P Series

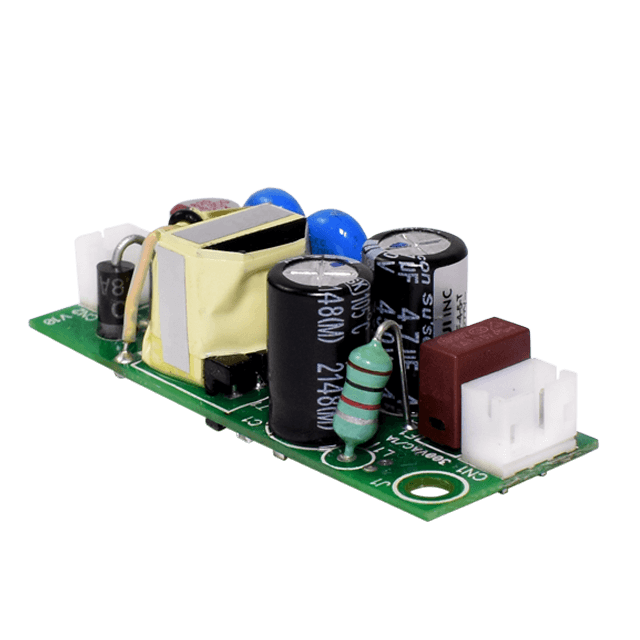

The VOF-4-P series is an open-frame AC-DC power supply housed in a compact 2” x 1” chassis mount package. These models feature no-load power consumption less than 0.075 W, a wide operating temperature, and efficiency up to 82%. The VOF-4-P's efficient performance and compact size make them an ideal solution for a range of consumer or industrial applications.
Features
  • Operating altitude up to 5000m
  • Over Voltage Category OVC II and OVC III
  • No-load power consumption < 0.075 W
  • Efficiency up to 82%
Specifications
  • Power (W): 4
  • Input Voltage Range (VAC): 85 ~ 305
  • Output Voltage (VDC): 3.3 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +80
  • Cooling Type: Convection
  • Dimensions L x W x H (mm): 49.5 x 18 x 17.5
  • Dimensions L x W x H (in): 1.95 x 0.71 x 0.689
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA
  • RoHS Compliant: Yes
