VOF-36E Series

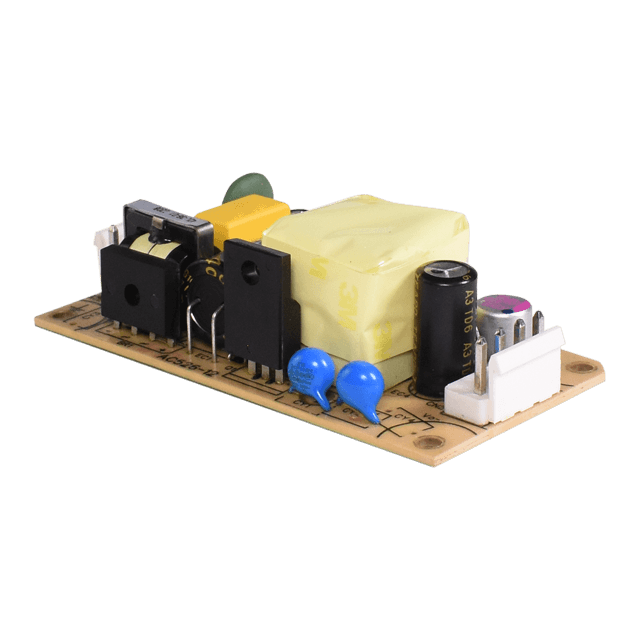

The VOF-36E series is a family of open frame AC-DC power supplies housed in a compact 2” x 3” package. Certified to meet 62368-1 safety standards, these 36 W open frame modules feature a -40ºC ~ +80ºC temperature range, an operating altitude of 5,000 meters, and Class B emissions.
Features
  • Class B emissions
  • 5000 meter operating altitude
  • No-load power consumption < 0.1 W
Specifications
  • Power (W): 30 ~ 36
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 5 ~ 48
  • Operating Temperature Range (ºC): -40 ~ +80
  • Cooling Type: Convection
  • Dimensions L x W x H (mm): 76.2 x 38.1 x 25.4
  • Dimensions L x W x H (in): 3 x 1.5 x 1
  • Safety Standards: 62368
  • Safety Approvals: CE, UKCA, UL/cUL
  • RoHS Compliant: Yes
