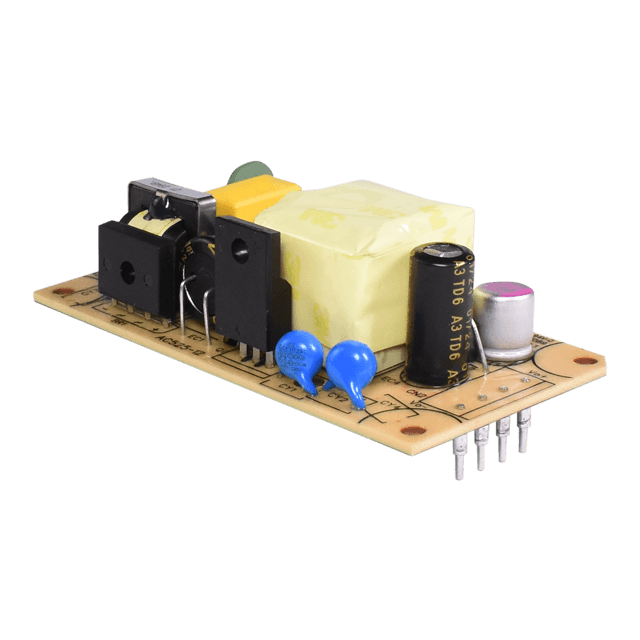

VOF-36E-P Series
Specifications
- Power (W): 30 ~ 36
- Input Voltage Range (VAC): 90 ~ 264
- Output Voltage (VDC): 5 ~ 48
- Operating Temperature Range (ºC): -40 ~ +80
- Cooling Type: Convection
- Dimensions L x W x H (mm): 76.2 x 38.1 x 27.94
- Dimensions L x W x H (in): 3 x 1.5 x 1.1
- Safety Standards: 62368
- Safety Approvals: CE, UKCA, UL/cUL
- RoHS Compliant: Yes
Features
- Class B emissions
- 5000 meter operating altitude
- No-load power consumption < 0.1 W
Loading more products . . .
Compatible Products with VOF-36E-P Series
Related Products
VOF-36E Series
The VOF-36E series is a family of open frame AC-DC power supplies housed in a compact 2” x 3” package. Certified to meet 62368-1 safety standards, these 36 W open frame modules feature a -40ºC ~ +80ºC temperature range, an operating altitude of 5,000 meters, and Class B emissions.
View Product
