TET3000-12-069 (AC-DC/HVDC) Series

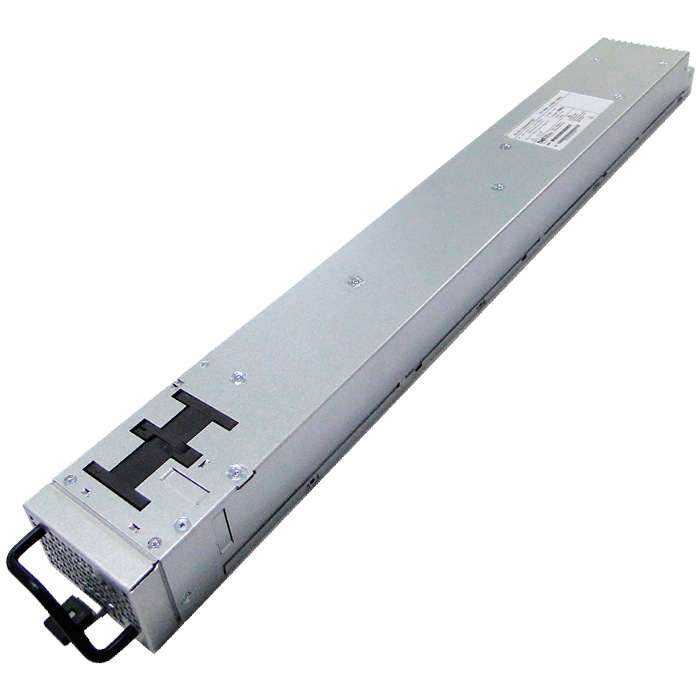

The TET3000-12-069 Series is a 3000 Watt AC-DC power-factor-corrected (PFC) DC/DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The TET3000-12-069 Series meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • Best-in-class, Titanium efficiency
  • AC input with power factor correction
  • Hot-plug capable
  • Parallel operation with active current sharing thru analog bus
  • Full digital controls for improved performance
  • I2C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader
Specifications
  • Power (W): 3000
  • Input Voltage Range (VAC): 90 ~ 300
  • Input Voltage Range (HVDC): 180 ~ 410
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +50
  • Cooling Type: Fan
  • Dimensions L x W x H (mm): 555 x 69 x 40.5
  • Dimensions L x W x H (in): 21.85 x 2.71 x 1.59
  • Safety Standards: 62368
  • Safety Approvals: BSMI, CB, CE, CQC, CSA, Nemko
  • RoHS Compliant: Yes
