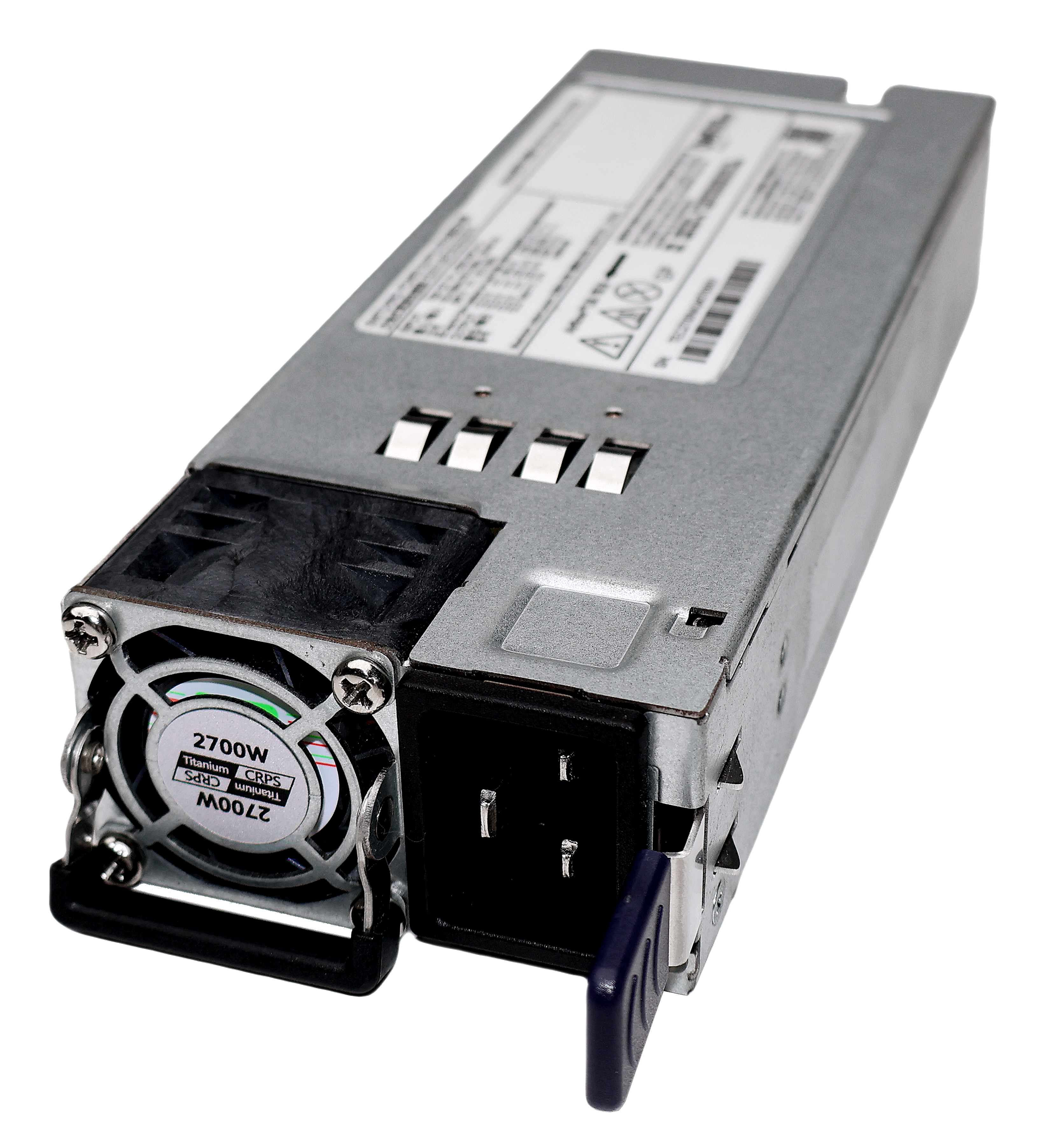

TEC2700-12-074xA Series

2700 W Titanium AC-DC/HVDC CRPS Front End Power Supply

TEC2700-12-074xA is a 2700W Common Redundant Power Supply (CRPS) power supply that converts standard AC mains power or High Voltage DC bus voltages (HVDC) into a main output of 12 VDC for powering systems using distributed power architectures. The power supply is hot-swappable and supports N+1 redundant architecture. The high-power density helps to improve the overall system efficiency and enhance system reliability. The full digital control facilitates remote set-up, monitoring and control. TEC2700-12-074xA offers multiple protections including overvoltage, overtemperature, overcurrent, overpower & short circuit protection. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
2 Products
Share Results
Compare (max 10 products)
Product 3D Model Power (W) Input Voltage Range (VAC) Output Voltage (VDC) Output Current (A) Mounting Type Package Dimensions L x W x H (mm)
|
2700 90 ~ 264 12 221.4 Rack Mount Enclosed 185 x 73.5 x 40
|
2700 90 ~ 264 12 221.4 Rack Mount Enclosed 185 x 73.5 x 40
Loading more products . . .

Technical Resources & Documents

Loading more products . . .

Compatible Products with TEC2700-12-074xA Series
