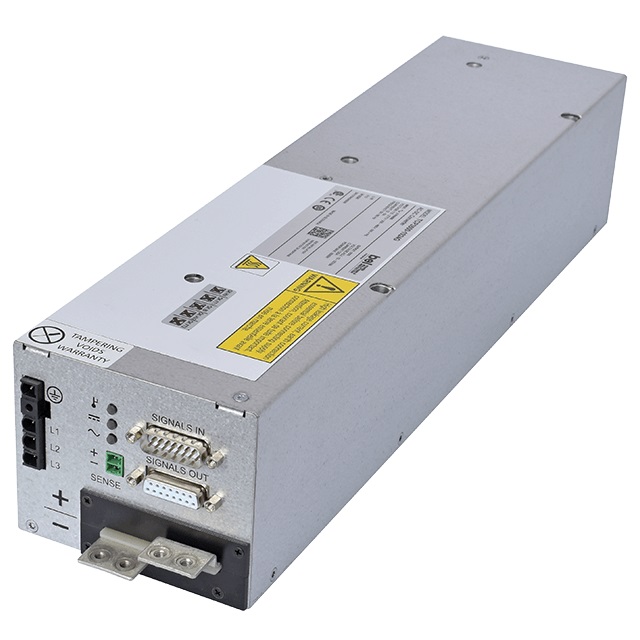

TCP3500/4000 Series

The TCP3500/4000 Series is a universal 3-phase AC-DC converter with adjustable DC output and universal 3-phase AC input. Conduction cooling (no fan) makes this power supply series suitable for a wide variety of Industrial Applications that can utilize conduction or liquid cooling, negating the use of fans. Emphasis is given on reliability and long life. Parallel operation is possible up to 16 units (57.6 kW). Active current share system. The PSU includes DSP which enables monitoring of electrical parameters (including input voltage of all 3 phases) and controlling the PSU from system controller. An RS485 bus is used for command, monitoring and diagnostic information that can be supplied to a system controller.

Part Numbers

Specifications & Features

Technical Documents

Technical Support

Loading more products . . .

Compatible Products with TCP3500/4000 Series

Clear Filters

TCR-4-48G - Demo Rack for TCP3500

The TCR-4-48G power rack can be configured with four TCP3500 Series units delivering up to 14 kW of output power. It can be mounted to a 19 inch rack systems using adaptor mounting brackets. Two internal RS485 interfaces are used for control, monitoring and diagnostic information that can be supplied to a system controller. Water cooling base plate makes the TCR-4-48G suitable for a wide variety of Industrial Applications where the liquid cooling is required.

View Product

Option

TXP3500/4000 Series

The TXP3500/4000 series of fan cooled power supplies convert a universal 3 phase AC i/p to an adjustable, wide range, single o/p @ 3.5/4 kW. Parallel operation is possible up to 8 units (28/32 kW). Passive or active current share system can be selected. This industrial Power Supply Unit (PSU) includes DSP technologies which enables monitoring of electrical parameters (including input voltage of all 3 phases) and allowing control of the PSU from a system controller. RS485 / CAN bus communication is available to command, monitor and provide diagnostic information that can be used to interface a system controller.

View Product
