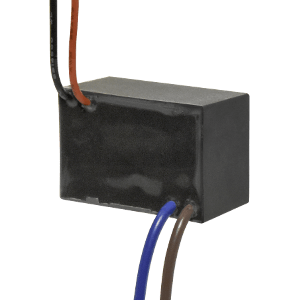

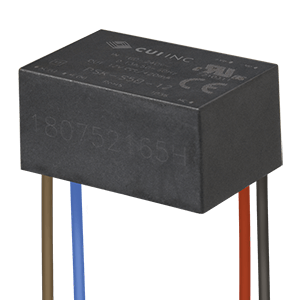

PSK-S5B-L Series
Recommended Replacements

PSK-4 Series
The PSK-4 series is a family of encapsulated AC-DC power supplies housed in a compact, board mount package. With 4 W of continuous power, these single output, encapsulated modules feature efficiency up to 82% and a wide operating temperature range from -40 to 80ºC. They are ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.
View Product
PSK-6B Series
The PSK-6B series is a family of encapsulated AC-DC power supplies housed in a compact board mount package. Outputting 6 W of continuous power, these single output, encapsulated modules feature 4 kVac isolation and no-load power consumption less than 100 mW, making them ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.
View Product- 3 ~ 5 W
- 85 ~ 264 Vac input (universal)
- 3 ~ 24 Vdc output options
- Compact encapsulated assembly
- 4
- 000 Vac isolation
- -40 to +70°C temperature range
- Power (W): 3.3 ~ 5
- Input Voltage Range (VAC): 85 ~ 264
- Output Voltage (VDC): 3.3 ~ 24
- Safety Standards: 62368
- Safety Approvals: UL/cUL
- RoHS Compliant: Yes
