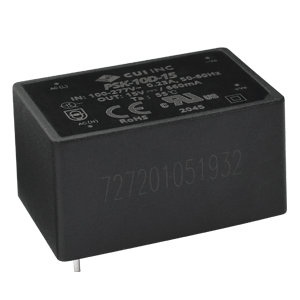

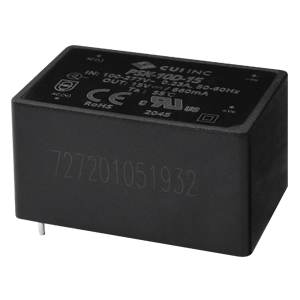

PSK-10D-15 AC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Recommended Replacements for PSK-10D-15
PSK-10E-15
10W AC-DC Power Supply, 15VDC, 85-305VAC, 0.7A, 1 output, Encapsulated, Through Hole
View Product
PSK-10B-S15
10.5 W AC-DC Power Supply, 15 VDC, 0.7 A Output, 85 ~ 264 VAC Input Range, Enclosed, Through Hole
View Product
PSK-10G-15
10 W AC-DC Power Supply, 15 VDC, 90 ~ 264 VAC, 0.67 A, 1 output, Encapsulated, Through Hole
View Product
PSKM-10G-15
10 W Medical AC-DC Power Supply, 15 VDC, 90 ~ 264 VAC, 0.67 A, 1 output, Encapsulated, Through Hole
View ProductFeatures & Specifications
| Power (W) | 10 |
| Input Voltage Range (VAC) | 85 ~ 305 |
| Number of Outputs | 1 |
| Output Voltage (VDC) | 15 |
| Output Current (A) | 0.66 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Cooling Type | Convection |
| Dimensions L x W x H (mm) | 40 x 25.4 x 21 |
| Dimensions L x W x H (in) | 1.57 x 1 x 0.83 |
| Mounting Type | Through Hole Mount |
| Package | Enclosed |
| Features | Over-voltage Category III |
| Market | ITE |
| Safety Standards | 60335, 61558, 62368 |
| Safety Approvals | CE, UL/cUL |
| RoHS Compliant | Yes |
| Brand | CUI |
