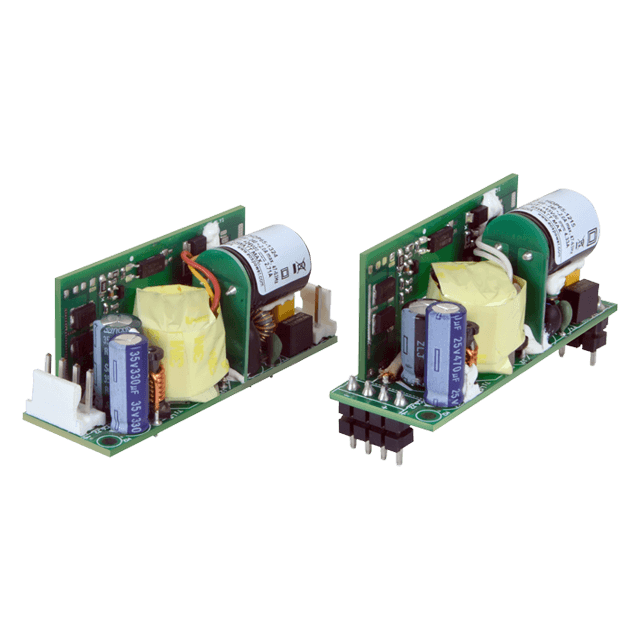

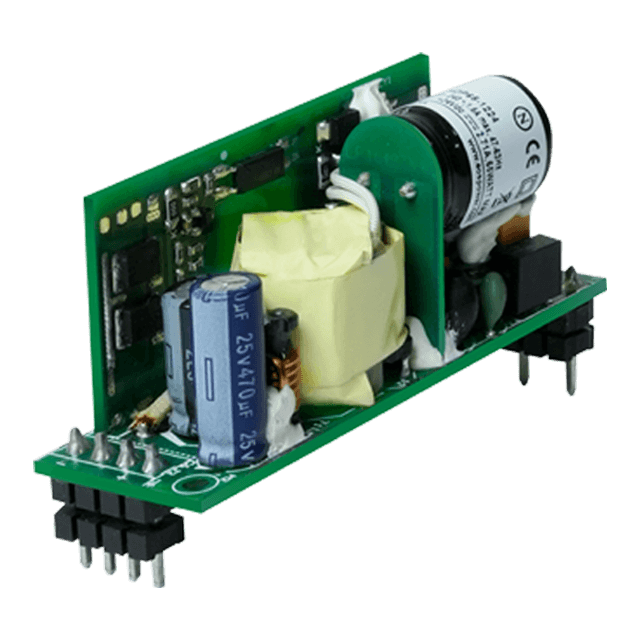

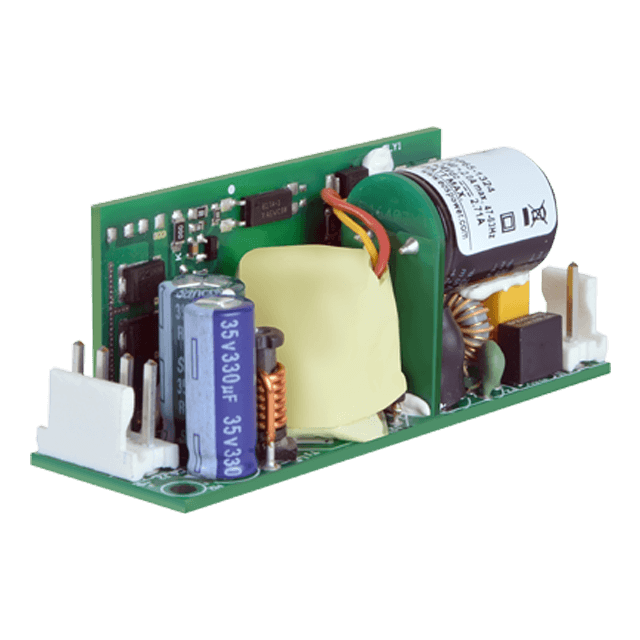

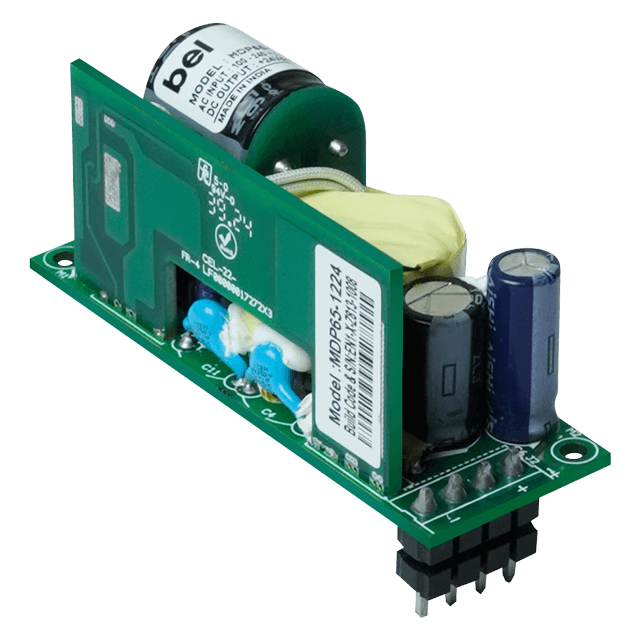

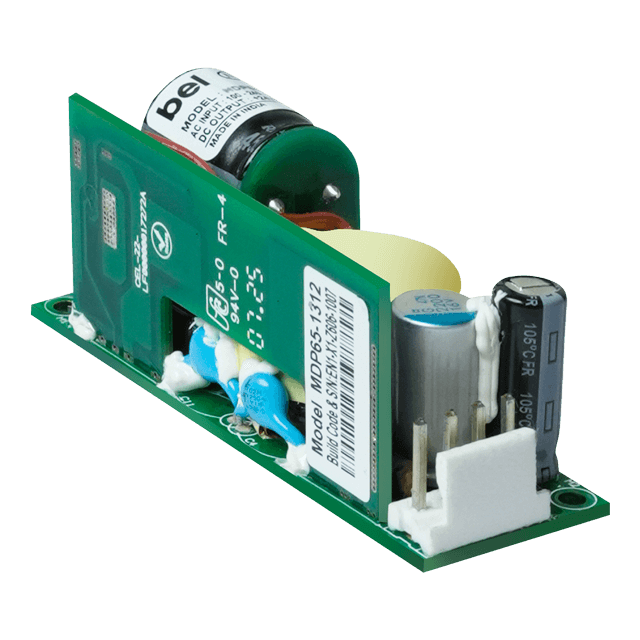

MDP65 Series

The MDP65 series is a family of Open Frame AC-DC power supply. Outputting 65W power, these modules feature a universal 90~264VAC Vac input voltage range and a wide operating temperature range of -20 ~ 70°C, making them ideal for Medical applications. Made In India Image

Made In India Image

Features

New efficient GaN power technology design
Efficiency up to 92%
Form factor 1 x 3 x 1.26 in
High power density 17.20 W/in³

Specifications

Power (W): 65
Input Voltage Range (VAC): 90 ~ 264
Output Voltage (VDC): 5 ~ 56
Operating Temperature Range (ºC): -20 ~ +70
Cooling Type: Convection
Dimensions L x W x H (mm): 76.2 x 25.4 x 32
Dimensions L x W x H (in): 3 x 1 x 1.26
Safety Standards: 60601
Safety Approvals: Nemko, UL
RoHS Compliant: Yes
