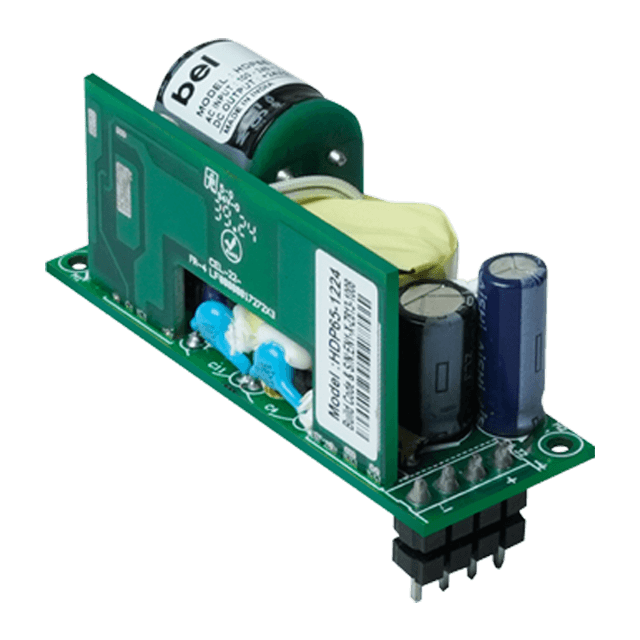

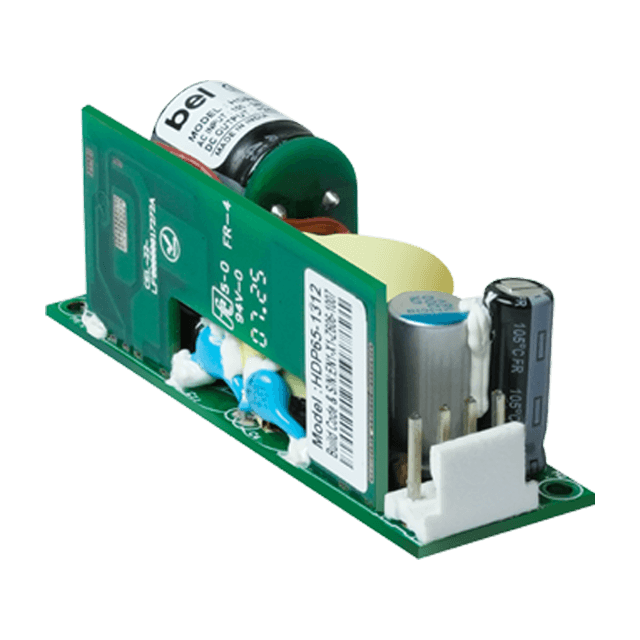

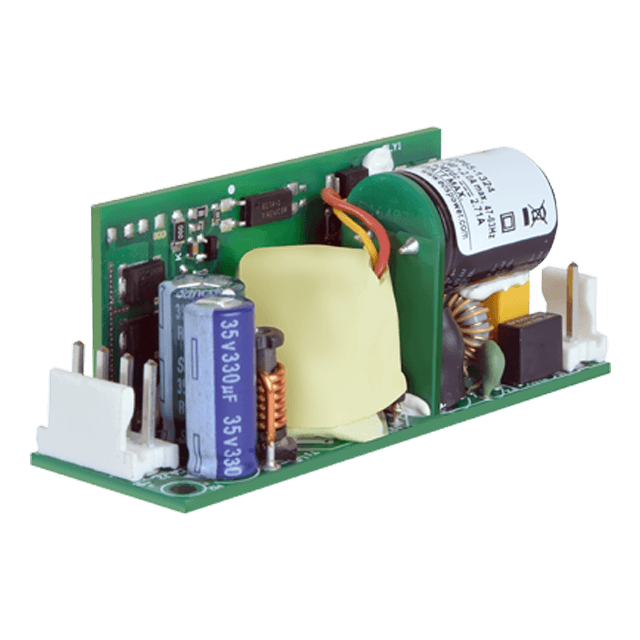

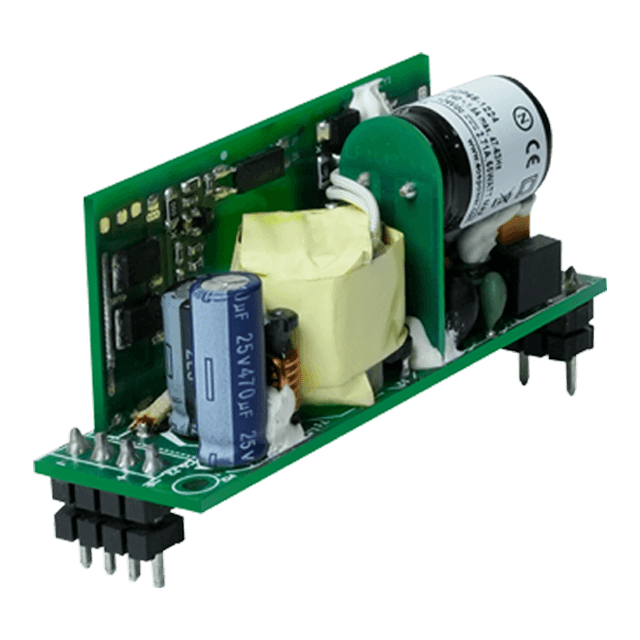

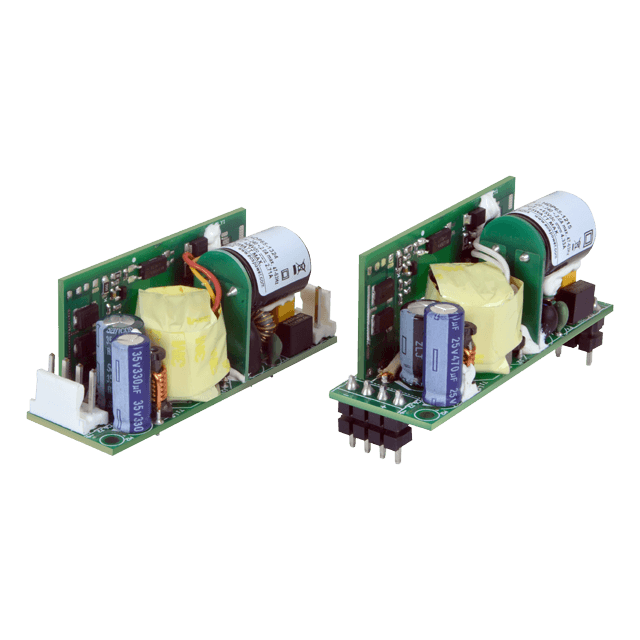

HDP65 Series
Specifications
- Power (W): 65
- Input Voltage Range (VAC): 90 ~ 305
- Output Voltage (VDC): 5 ~ 56
- Operating Temperature Range (ºC): -20 ~ +70
- Cooling Type: Convection
- Dimensions L x W x H (mm): 76.2 x 25.4 x 32
- Dimensions L x W x H (in): 3 x 1 x 1.26
- Safety Standards: 62368
- Safety Approvals: Nemko, UL
- RoHS Compliant: Yes
Features
- New efficient gallium nitride (GaN) power technology design
- Efficiency up to 92%
- Form factor 1 x 3 x 1.26 in
- High power density 17.20 W/in3
