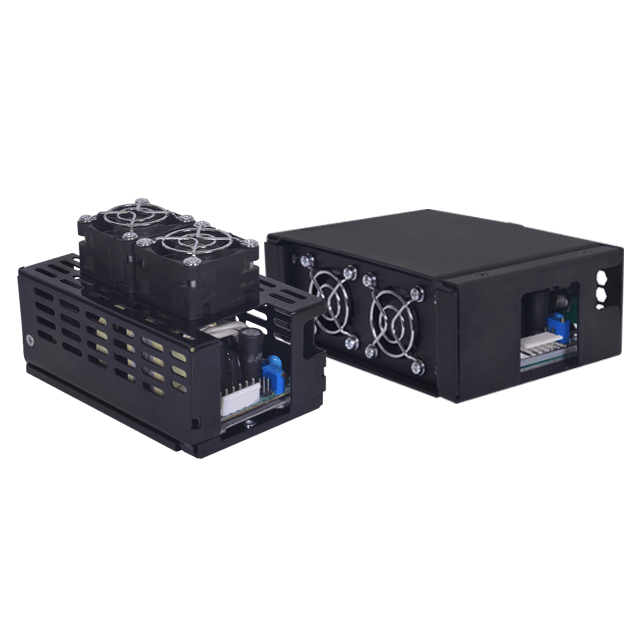

FLS400 Series
12 Products
| Product | 3D Model | Power (W) | Input Voltage Range (VAC) | Output Voltage (VDC) | Output Current (A) | Mounting Type | Package | Dimensions L x W x H (mm) |
|---|---|---|---|---|---|---|---|---|
FLS400-1312-SFIn stock
|
|
|
300 | 85 ~ 264 | 12 | 25 | Chassis Mount | Cover Kit with Side Fan | 135.128 x 108.966 x 50.038 |
FLS400-1312-TFIn stock
|
|
|
300 | 85 ~ 264 | 12 | 25 | Chassis Mount | Cover Kit with Top Fan | 134.366 x 77.216 x 82.296 |
FLS400-1315-SFIn stock
|
|
|
300 | 85 ~ 264 | 15 | 20 | Chassis Mount | Cover Kit with Side Fan | 135.128 x 108.966 x 50.038 |
FLS400-1315-TFIn stock
|
|
|
300 | 85 ~ 264 | 15 | 20 | Chassis Mount | Cover Kit with Top Fan | 134.366 x 77.216 x 82.296 |
FLS400-1324-SFIn stock
|
|
|
400 | 85 ~ 264 | 24 | 16.7 | Chassis Mount | Cover Kit with Side Fan | 135.128 x 108.966 x 50.038 |
FLS400-1324-TFIn stock
|
|
|
400 | 85 ~ 264 | 24 | 16.7 | Chassis Mount | Cover Kit with Top Fan | 134.366 x 77.216 x 82.296 |
FLS400-1330-SFIn stock
|
|
|
400 | 85 ~ 264 | 30 | 13.3 | Chassis Mount | Cover Kit with Side Fan | 135.128 x 108.966 x 50.038 |
FLS400-1330-TFIn stock
|
|
|
400 | 85 ~ 264 | 30 | 13.3 | Chassis Mount | Cover Kit with Top Fan | 134.366 x 77.216 x 82.296 |
FLS400-1348-SFIn stock
|
|
|
400 | 85 ~ 264 | 48 | 8.3 | Chassis Mount | Cover Kit with Side Fan | 135.128 x 108.966 x 50.038 |
FLS400-1348-TFIn stock
|
|
|
400 | 85 ~ 264 | 48 | 8.3 | Chassis Mount | Cover Kit with Top Fan | 134.366 x 77.216 x 82.296 |
FLS400-1358-SFIn stock
|
|
|
400 | 85 ~ 264 | 58 | 6.9 | Chassis Mount | Cover Kit with Side Fan | 135.128 x 108.966 x 50.038 |
FLS400-1358-TFIn stock
|
|
|
400 | 85 ~ 264 | 58 | 6.9 | Chassis Mount | Cover Kit with Top Fan | 134.366 x 77.216 x 82.296 |
Loading more products . . .
Technical Resources & Documents
Drawings & Datasheets
Safety Certificates
Tech Resources
Specifications
- Power (W): 300 ~ 400
- Input Voltage Range (VAC): 85 ~ 264
- Output Voltage (VDC): 12 ~ 58
- Operating Temperature Range (ºC): -40 ~ +70
- Cooling Type: Fan
- Safety Standards: 62368
- Safety Approvals: CB, CE, CSA, Nemko
- RoHS Compliant: Yes
Features
- High power density: 23.70W/inch3
- Thermal shut-down feature/dual fusing
- 2.56m hours, Telcordia -SR332-issue 3 MTBF
Loading more products . . .
Compatible Products with FLS400 Series
Option
FLS250 Series
The New FLS250 series is true fanless power up to 250 W. This is a highly efficient power supply that can deliver up to 350 W with air. The power supply is packed in a 4.5’ x 2.5’ size, while also having the industry-standard “2 x 4” or “3 x 5” mounting option. Also available in various types of casing options.
