PET2000 (AC-DC) Series
PET2000 (AC-DC) Series

PET2000 (AC-DC) Series

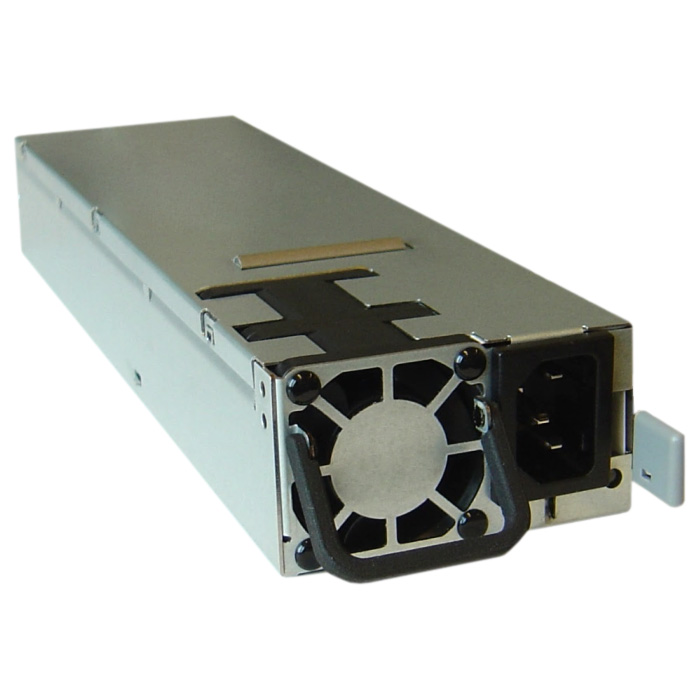

The PET2000-12-074xA is a 2000 Watt AC to DC, power-factor-corrected (PFC) power supply that converts standard AC power into a main output of +12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches.
Features
  • AC input with power factor correction
  • Hot-plug capable
  • Parallel operation with active current sharing
  • Full digital controls for improved performance
  • Power Management Bus communication interface for control, programming and monitoring
Specifications
  • Power (W): 2000
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +55
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: BSMI, CB, CE, CQC, CSA, EAC, Nemko
  • RoHS Compliant: Yes
