PET2000 (AC-DC with 450 mm long cables) Series
PET2000 (AC-DC with 450 mm long cables) Series

PET2000 (AC-DC with 450 mm long cables) Series

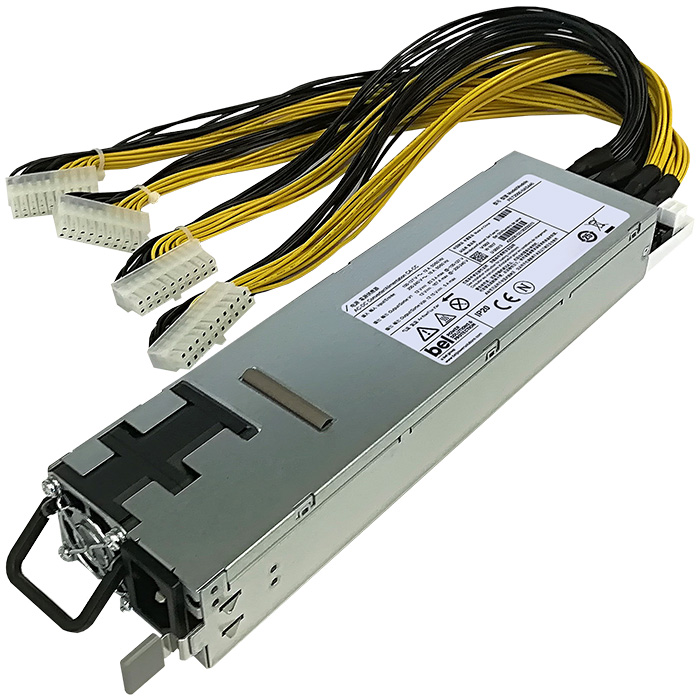

PET2000-NAS446 is a 2000 Watt AC to DC, power-factor corrected (PFC) power supply that converts standard AC power into a main output of +12 VDC. PET2000-NAS446 utilizes full digital control architecture for greater efficiency, control and functionality. The unit includes four 450 mm long cables with 20 pin connectors. The four connectors are intended to be attached directly to individual mining load boards. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • Best-in-class, 80 PLUS Platinum Efficiency
  • AC Input with Power Factor Correction
  • Output cable wire harness set included
  • Full Digital Controls for Improved Performance
  • Power Management Bus communication interface for control, programming and monitoring
Specifications
  • Power (W): 2000
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): -5 ~ +55
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, CSA, Nemko
  • RoHS Compliant: Yes
