PET2000 (AC-DC/HVDC) Series
PET2000 (AC-DC/HVDC) Series

PET2000 (AC-DC/HVDC) Series

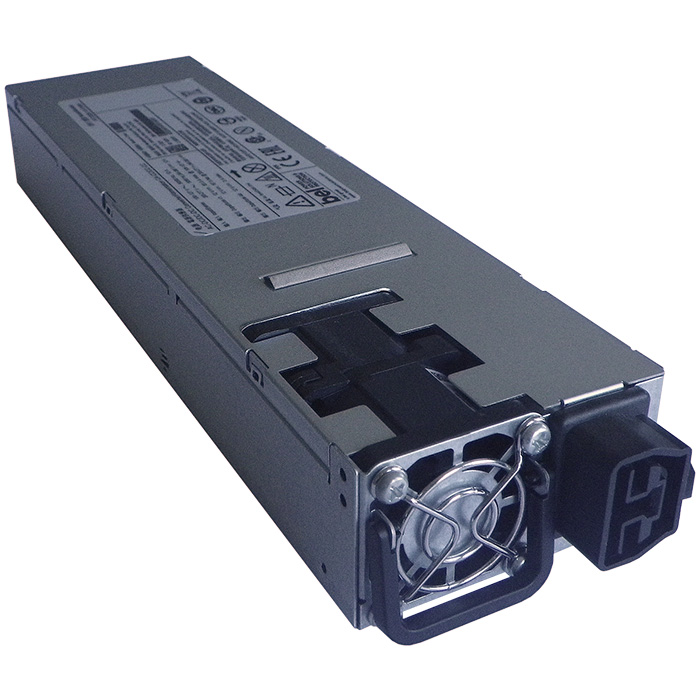

PET2000-12-074xH is a 2000 Watt, power-factor corrected (PFC) power supply that converts standard AC or DC power into a main output of +12 VDC. PET2000-12-074xH utilizes full digital control architecture for greater efficiency, control and functionality. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
Features
  • Best-in-class, 80 PLUS “Platinum” Efficiency
  • Hot-Plug Capable
  • AC Input with Power Factor Correction
  • Parallel Operation with Active Current Sharing
  • Full Digital Controls for Improved Performance
  • Status LED with Fault Signaling
  • Power Management Bus communication interface for control, programming and monitoring
Specifications
  • Power (W): 2000
  • Input Voltage Range (VAC): 90 ~ 300
  • Input Voltage Range (HVDC): 192 ~ 400
  • Output Voltage (VDC): 12
  • Standby Output Voltage (VDC): 12
  • Operating Temperature Range (ºC): 0 ~ +55
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: BSMI, CB, CE, CQC, CSA, EAC, Nemko
  • RoHS Compliant: Yes
