3D View

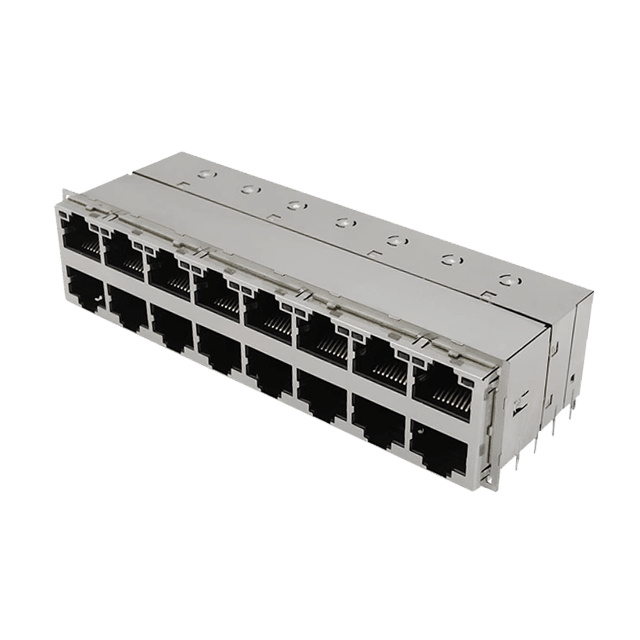

G14-D8NV-010N MagJacks® (ICMs)
2X8 | 10G | -40 to 85ºC | Light Pipe | No PoE Rating | T/H | No EMI Tabs
Stock Check
Country - USA
Features & Specifications
| Number of Ports | 2X8 |
| Speed | 10GBASE-T |
| Height Profile | Standard |
| LED | No |
| LED Type | Light Pipe |
| Port Configuration | Stacked |
| PoE Rating | Non PoE |
| Mounting Type | Through Hole Mount |
| Operating Temperature (ºC) | -40 ~ +85 |
| EMI Tabs | No |
| RoHS Compliant | Yes |
| Brand | Bel |
Compatible Products with G14-D8NV-010N
Option
G37-D8NV-011K
2X8 | 10G | -40 to 85ºC | Light Pipe | 4PPoE 60W PoE Rating | P/F | No EMI Tabs | Pessfit
View Product
Option
G37-D8ND-085A
2X8 MagJack® ICM | 10GBASE-T | Stacked | 0 to 70ºC | Lightpipe | Pressfit
View Product
Option
G37-D8NV-010N
2X8 | 10G | -40 to 85ºC | Light Pipe | No PoE Rating | P/F | No EMI Tabs | Pessfit
View Product
Option
G28-D8NV-011K
2X8 | 10G | -40 to 85ºC | Light Pipe | 4PPoE 60W PoE Rating | T/H | No EMI Tabs
View Product
