0ADG Series
0ADG Series
Left arrow Right arrow

0ADG Series

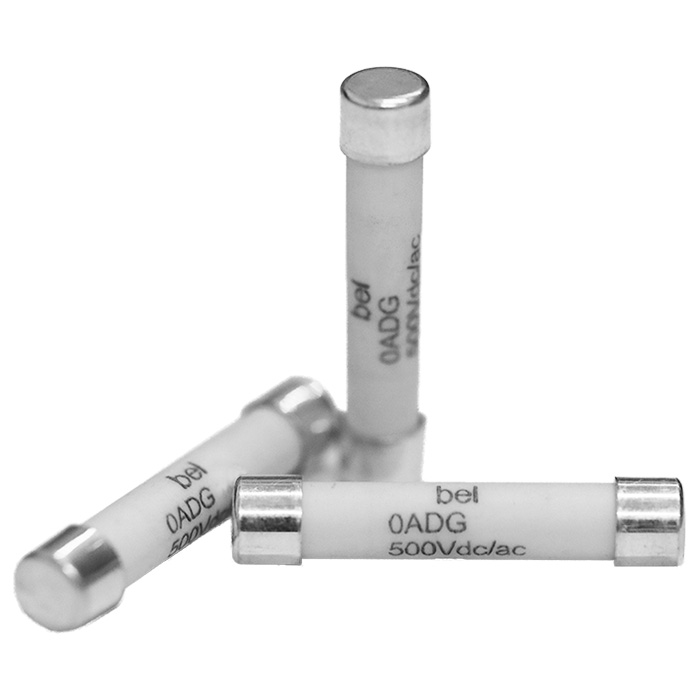

A 500 VAC/VDC rated ceramic tube cartridge fuse in a 6.3 x 32 mm package. The High I²t values make the series ideal for AC/DC modules for EV & EV charging.
Features
  • Ceramic Tube, Silver Plated End Caps
  • Tin Plated Leads Axial Leads
  • RoHS Compliant
  • Lead Free
  • Halogen Free
Specifications
  • Fuse Type: Glass/Ceramic Tube Fuses
  • Current (A): 8 ~ 30
  • Voltage (VDC): 500
  • Voltage (VAC): 500
  • Mounting Type: Requires Holder, Through Hole Mount
  • Response Time: Fast Blow
  • AEC-Q200 Compliant: No
  • RoHS Compliant: Yes
