F1A1 303012/303015/303018 Series
F1A1 303012/303015/303018 Series

F1A1 303012/303015/303018 Series

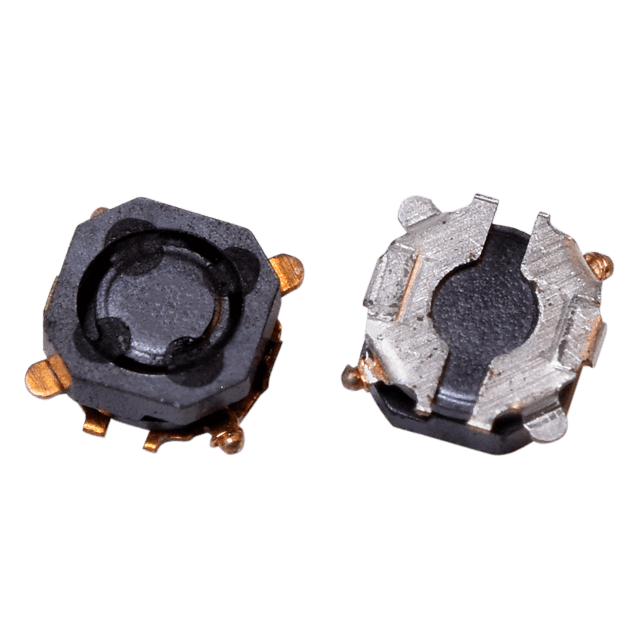

The F1A1-303012, F1A1-303015, and F1A1-303018 Series deliver compact, shielded power inductors designed for efficient power regulation. With a low-profile height (1.2mm–1.8mm) and a 3.0mm x 3.0mm footprint, they offer a wide inductance and current range to meet demanding design requirements.

Engineered for DC-DC converters, automotive, and industrial applications, these inductors provide low DCR, high current capacity, and effective EMI suppression. Their magnetic shielding minimizes interference, ensuring reliable performance in noise-sensitive circuits. Ideal for power filtering, energy storage, and voltage regulation, the F1A1 Series helps optimize efficiency and system stability.

Features
  • Surface Mount
  • Low profile & compact size
  • Magnetically shielded construction
  • Low radiation
  • High saturation & high heating current
  • Copper base with DR core & RI core
  • Automated process
Specifications
  • Inductance (uH): 1.2 ~ 47
  • Current (A): 0.25 ~ 1.1
  • Operating Temperature (ºC): -40 ~ +105
  • Mounting Type: Surface Mount
  • Shielding: Yes
  • AEC-Q200 Compliant: No
  • RoHS Compliant: Yes
