SPSTET4-09
Power Shelves & Racks

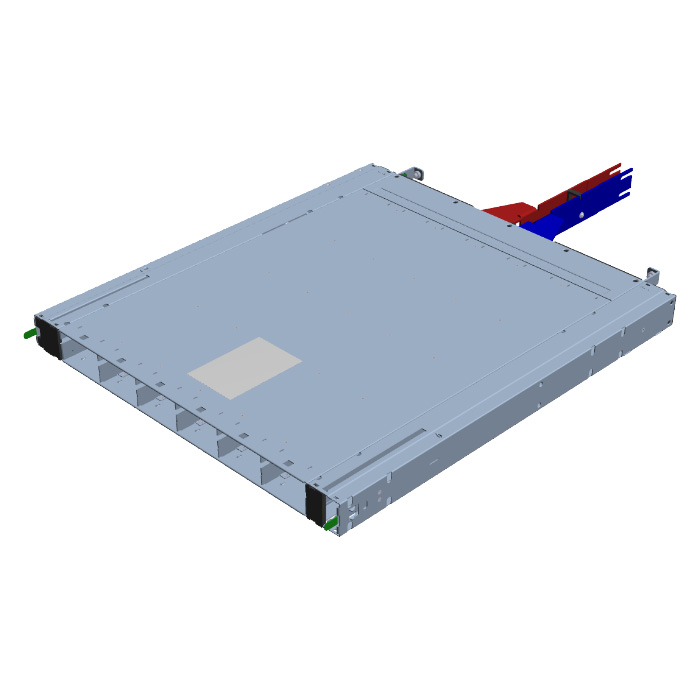

24060 W AC-DC Power Shelf, 3-Phase, 200 ~ 277 / 346 ~ 480 VAC Line to Line Input with Neutral Line Single Output Blade for +54.5 VDC Output, Straight Long Bus Bar
Stock Check
Country - USA
Features & Specifications
| Product Type | AC-DC |
| Power (W) | 24060 |
| Input Voltage Range (VAC) | 200 ~ 277, 346 ~ 480 |
| Output Voltage (VDC) | 54.5 |
| Output Current (A) | 440 |
| Operating Temperature Range (ºC) | 0 ~ +55 |
| Dimensions LxWxH (mm) | 602 x 534.5 x 46.5 |
| Input Configuration | 3-Phase WYE |
| Configuration (max no. of PSUs) | 6+0 |
| No. of Output Busbars | 1 (Straight Long) |
| NAC Included | No |
| Isolated | Yes |
| RoHS Compliant | Yes |
| Brand | Bel |
