BCN25-1000 - Battery Charger
BCN25-1000 - Battery Charger

DATASHEET


BCN25-1000 - Battery Charger

Share

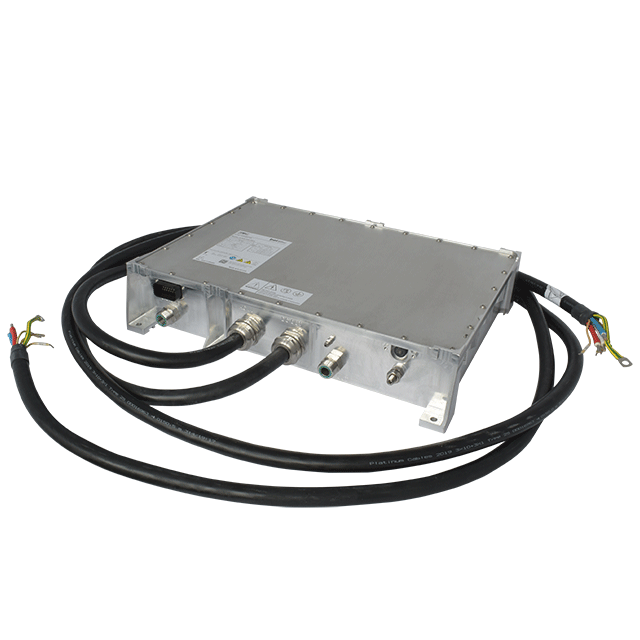

The BCN25-1000 Series is a 25 kW, liquid cooled battery charger that converts 3-phase AC voltage to DC voltage. Features include very high efficiency, high reliability and compact dimensions.

Specifications

  • Output power up to 25 kW
  • Typical efficiency 92%
  • AC 3-phase input 800 - 1100 V (Line-Line)
  • DC Output 240 - 430 V, 60 A max. (BCN25-1000-350-8)
  • DC Output 480 - 860 V, 30 A max. (BCN25-1000-700-8)

Features

  • J1939 compliant CAN for control and monitoring
  • SAE 1455 complaint environmental standards
  • IP65 and IP67 rating (mating connector fitted)
  • Designed according to UL 62368-1, IEC 60664-1
  • Over-temperature, output over-voltage and over-current protections

Email Form

SPECIFICATIONS

The BCN25-1000 Series is a 25 kW, liquid cooled battery charger that converts 3-phase AC voltage to DC voltage. Features include very high efficiency, high reliability and compact dimensions.

Specifications

  • Output power up to 25 kW
  • Typical efficiency 92%
  • AC 3-phase input 800 - 1100 V (Line-Line)
  • DC Output 240 - 430 V, 60 A max. (BCN25-1000-350-8)
  • DC Output 480 - 860 V, 30 A max. (BCN25-1000-700-8)

Features

  • J1939 compliant CAN for control and monitoring
  • SAE 1455 complaint environmental standards
  • IP65 and IP67 rating (mating connector fitted)
  • Designed according to UL 62368-1, IEC 60664-1
  • Over-temperature, output over-voltage and over-current protections
