MWLT60 Series
MWLT60 Series

MWLT60 Series

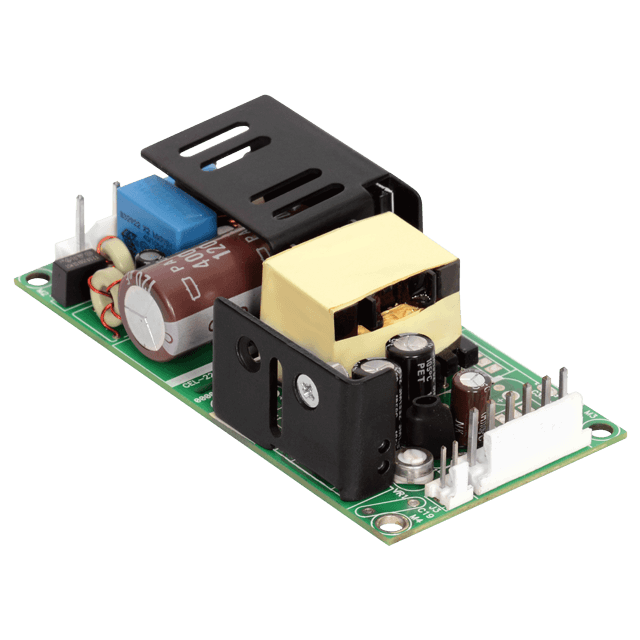

The EOS Power MWLT60 Series of open-frame medical power supplies, with its wide universal 90-264 VAC input range, is available at 60 W of output power and a variety of single and multiple output voltages. The MWLT60 series was designed to 3rd edition medical approvals and provides 2x MOPP (Means of Patient Protection) isolation for class 1 and class 2 installations. These medical power supplies are ideal for, monitoring, home health equipment as well as surgical devices. Made In India Image
Features
  • 2 x MOPP
  • No Minimum Load Required - Single Output Models
  • IEC Protection Class I and Class II
  • Medical Safety Agency Approvals
  • RoHS Compliant
Specifications
  • Power (W): 51 ~ 65
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 3.3 ~ 48
  • Operating Temperature Range (ºC): -20 ~ +70
  • Cooling Type: Convection
  • Safety Standards: 60601
  • Safety Approvals: CB, CE, Nemko, UL
  • RoHS Compliant: Yes
