MWLC550 Series

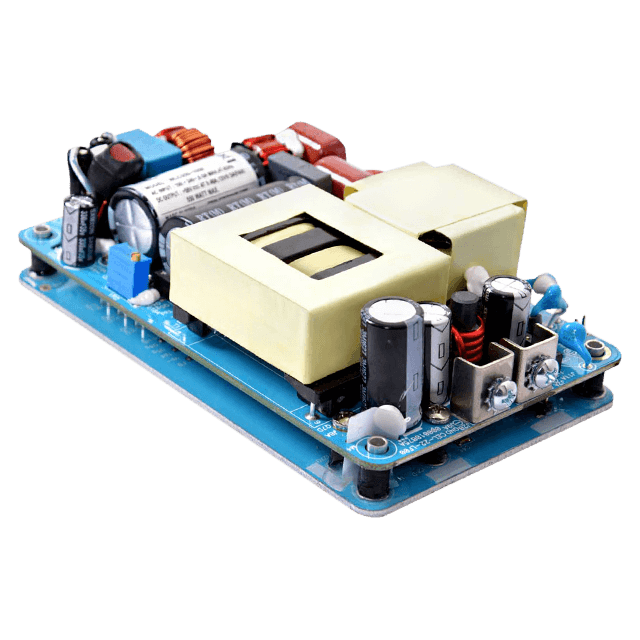

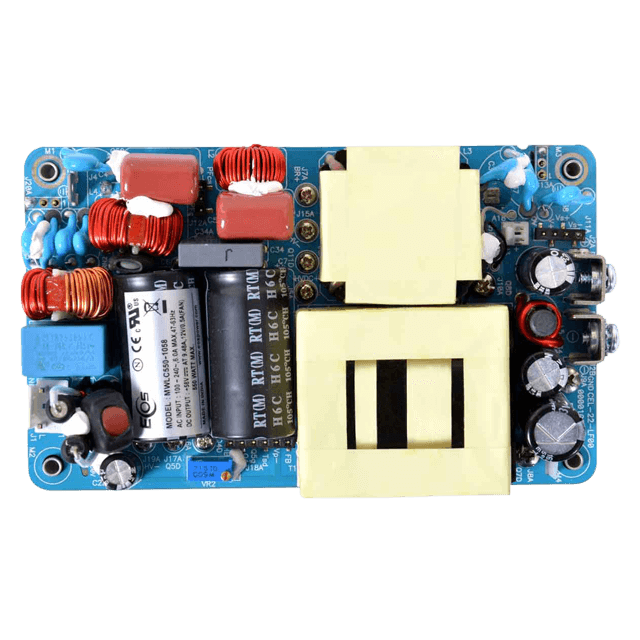

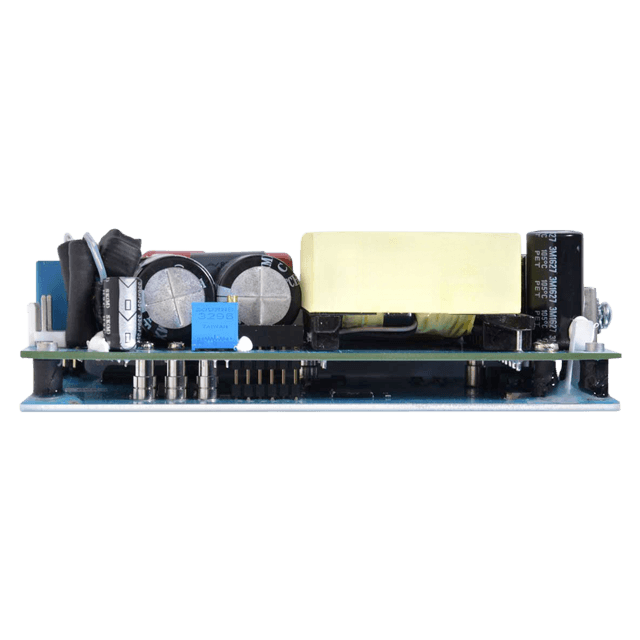

The EOS Power MWLC550 Series of open frame medical power supplies feature a wide universal AC input range of 90 - 264 VAC, offering up to 550 W of output power with forced air cooling, or 250 W with conduction cooling in a compact footprint, with a variety of isolated single output voltages. The MWLC550 range is ideally suited to a wide variety of medical applications, and also where airflow is limited or not available. Made In India Image

Features

Medical (BF) Safety Approvals
RoHS Compliant
CE Marked

Specifications

Power (W): 550
Input Voltage Range (VAC): 90 ~ 264
Output Voltage (VDC): 12 ~ 58
Operating Temperature Range (ºC): -40 ~ +70
Cooling Type: Fan
Dimensions L x W x H (mm): 127 x 76.2 x 38.1
Dimensions L x W x H (in): 5 x 3 x 1.5
Safety Standards: 60601
Safety Approvals: CB, CE, Nemko, UL
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support
