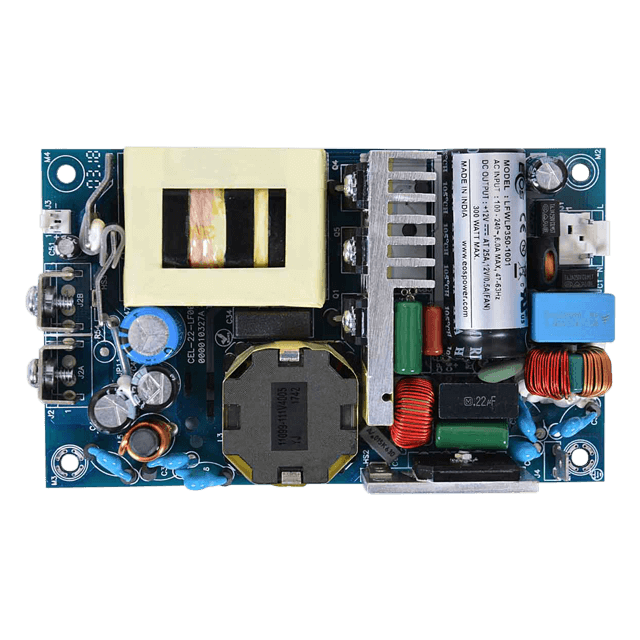

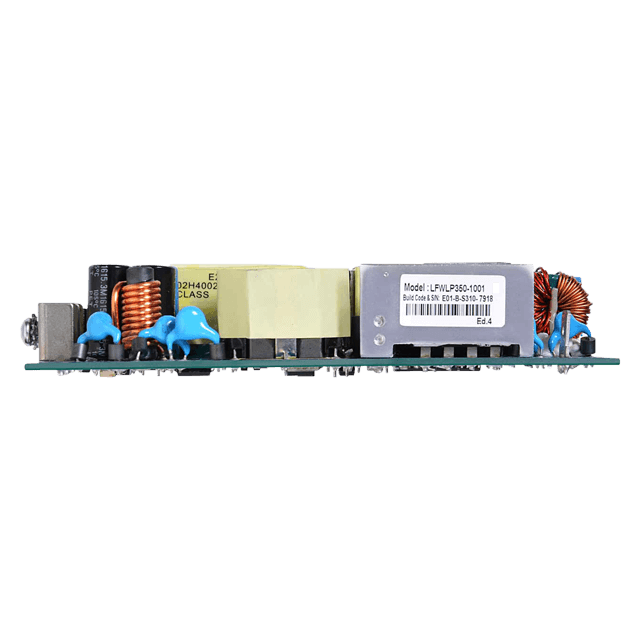

The EOS Power WLP350 Series of open frame power supplies feature a wide universal AC input range of 90 - 264 VAC, offering 350 W of output power in a compact 3 x 5 x 1 inch footprint, with a variety of isolated single output voltages. The high efficiency and high power density of the WLP350 family ensures minimal power loss in end-use equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally friendly end products. These power supplies are ideal for telecom, datacom, industrial equipment and other applications. Made In India Image
Features
  • Thermal Shut-Down Feature
  • Standby Power
  • RoHS Compliant
  • CE Marked
  • Cover Kit, Base Plate, U-Channel, L-Bracket package options avaliable
Specifications
  • Power (W): 350
  • Input Voltage Range (VAC): 90 ~ 264
  • Output Voltage (VDC): 12 ~ 58
  • Operating Temperature Range (ºC): -40 ~ +70
  • Cooling Type: Fan
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, Nemko, UL
  • RoHS Compliant: Yes
