WLP225 Series

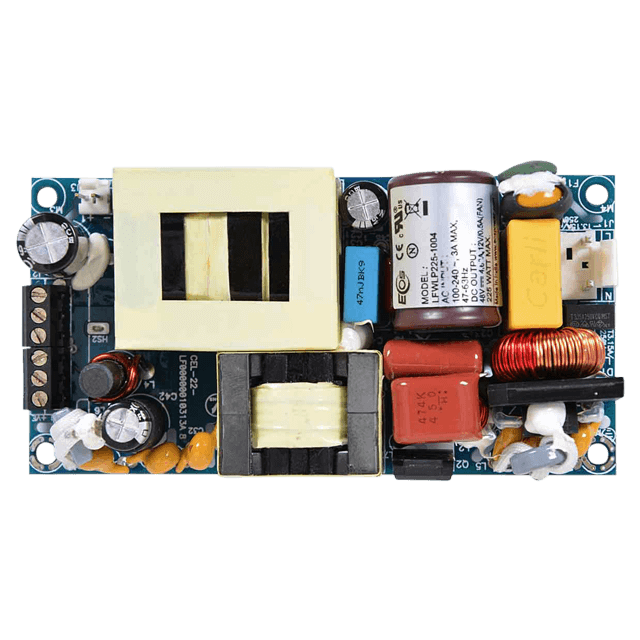

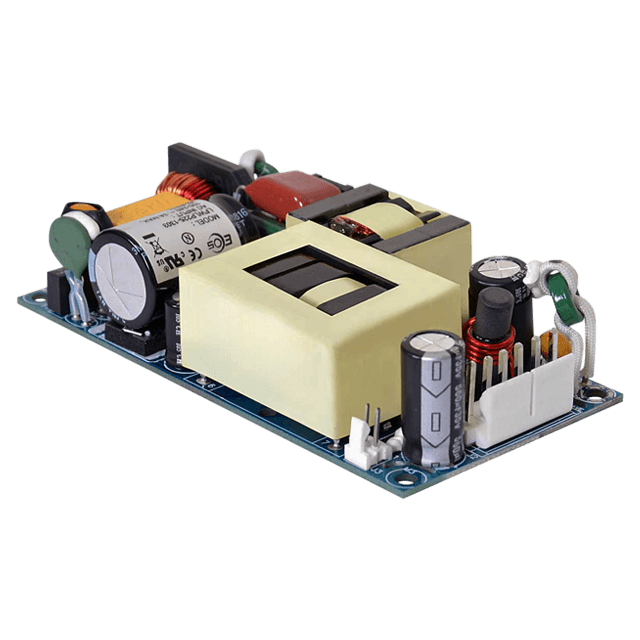

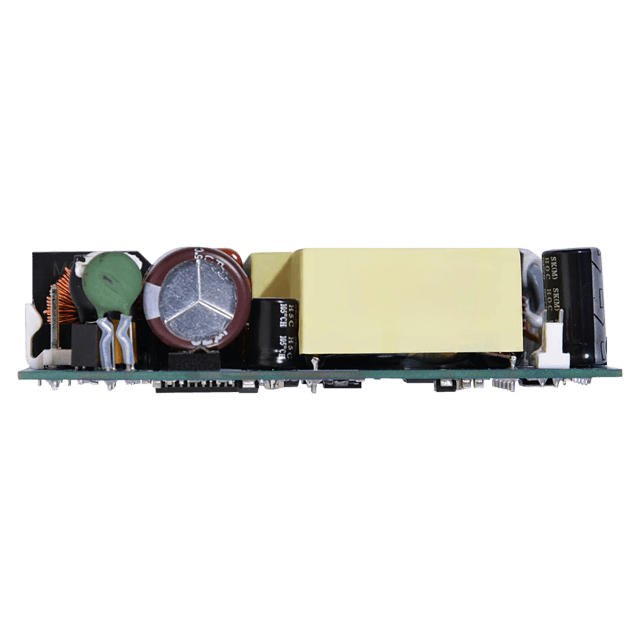

The EOS Power WLP225 Series of open-frame power supplies, with its wide universal 90-264 VAC input range and high power density, is available at 225 W of output power and a variety of single and multiple output voltages. The high efficiency and high power density of the WLP225 family ensures minimal power loss in enduse equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally friendly end products. These power supplies are ideal for telecom, datacom, industrial equipment and other applications. Made In India Image

Features

Thermal Shut-Down Feature
Standby Power
Cover Kit, Base Plate, U-Channel, L-Bracket package options avaliable

Specifications

Power (W): 225
Input Voltage Range (VAC): 85 ~ 264
Output Voltage (VDC): 12 ~ 58
Operating Temperature Range (ºC): -40 ~ +70
Cooling Type: Fan
Dimensions L x W x H (mm): 101.6 x 50.8 x 25.4
Dimensions L x W x H (in): 4 x 2 x 1
Safety Standards: 62368
Safety Approvals: CB, CE, Nemko, UL
RoHS Compliant: Yes

Part Numbers

Technical Documents

Technical Support

Loading more products . . .

Compatible Products

Accessories

LFWLP225-CK

Cover Kit for use with WLP225, MWLP225 Series open frame power supply. Non-corrosive, easy assembly, low weight, fully safe, access for AC and DC connectors. Made In India Image

View Product
