EPG500
EPG500

DATASHEET


EPG500

Share

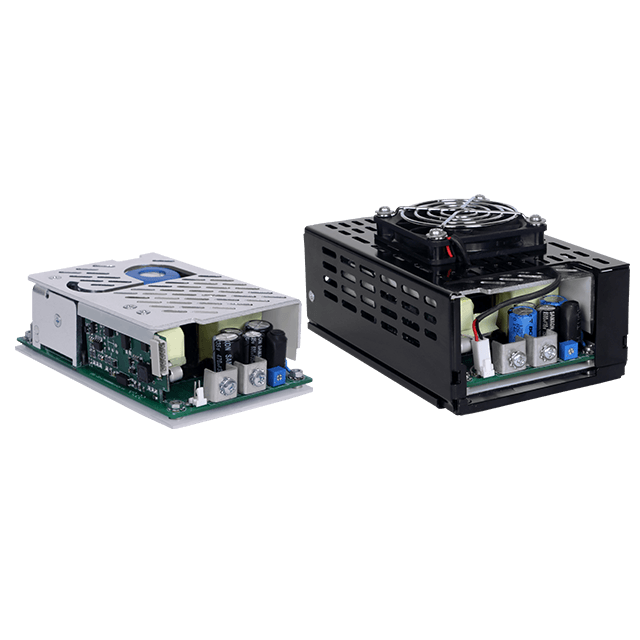

The EOS Power EPG500 Series of Industrial AC-DC Power Supplies provides up to 500 W of regulated output power over a wide input range of 90–264 VAC. The power supplies are available in six single output voltages ranging from 12 V to 58 V. The EPG500 Series can be used in a broad array of space constrained applications in which minimal power loss and easy thermal management are required. RoHS compliant and CE marked, the power supplies are safety agency certified and meet the latest regulatory requirements.

Specifications

  • Efficiency up to 94 %
  • 5 x 3 x 1.6 in (127 x 76.2 x 40.64 mm) Form factor
  • Output power up to 500 W
  • 550 W Peak power (Up to 10 sec)
  • High power density 23.43 W/inch3
  • Operating temperature - 40 to +70°C
  • IEC / EN / UL 62368 Ed 3.0 compliant
  • I²C interface communication provision added in future
  • Over temperature, OV, OC and SC protection

Features

  • New Efficient GaN power technology
  • Thermal shut-down feature
  • Available with metal enclosures / accessories
  • Stand by 5 VDC / PGPF Signal / Remote ON-OFF features (optional)
  • Fan 12 VDC, 0.5 A output & Remote sense signal

Datasheets and Drawings

Data Sheet EPG500 Datasheet

Email Form

SPECIFICATIONS

The EOS Power EPG500 Series of Industrial AC-DC Power Supplies provides up to 500 W of regulated output power over a wide input range of 90–264 VAC. The power supplies are available in six single output voltages ranging from 12 V to 58 V. The EPG500 Series can be used in a broad array of space constrained applications in which minimal power loss and easy thermal management are required. RoHS compliant and CE marked, the power supplies are safety agency certified and meet the latest regulatory requirements.

Specifications

  • Efficiency up to 94 %
  • 5 x 3 x 1.6 in (127 x 76.2 x 40.64 mm) Form factor
  • Output power up to 500 W
  • 550 W Peak power (Up to 10 sec)
  • High power density 23.43 W/inch3
  • Operating temperature - 40 to +70°C
  • IEC / EN / UL 62368 Ed 3.0 compliant
  • I²C interface communication provision added in future
  • Over temperature, OV, OC and SC protection

Features

  • New Efficient GaN power technology
  • Thermal shut-down feature
  • Available with metal enclosures / accessories
  • Stand by 5 VDC / PGPF Signal / Remote ON-OFF features (optional)
  • Fan 12 VDC, 0.5 A output & Remote sense signal
