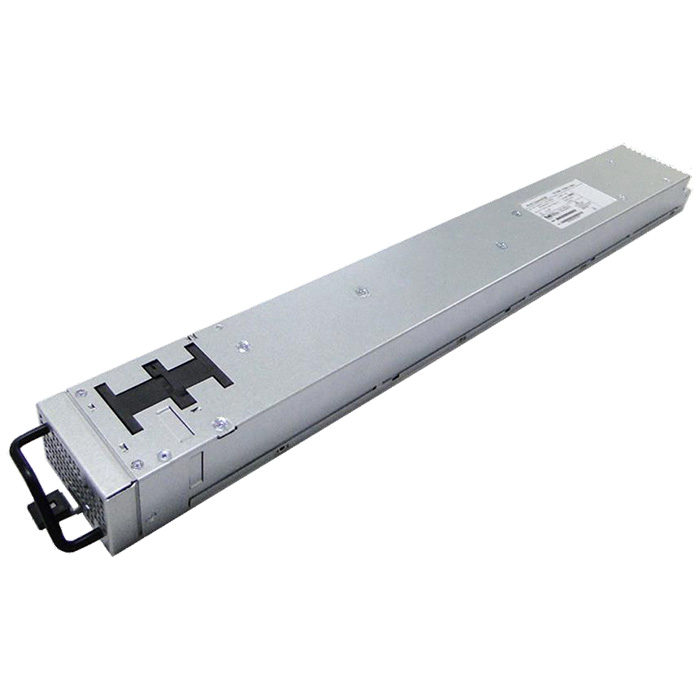

The TET3200 Series is a 3200 Watt AC-DC power-factor-corrected (PFC) or DC/DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The TET3200-12-069xA meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Universal input voltage range: 90-300 VAC
  • DC input voltage range: 180-410 VDC
  • High density design: 33.8 W/in3
  • Small form factor: 69 x 40.5 x 555 mm
  • 2 Status LEDs: AC OK and DC OK with fault signaling

Features

  • Best-in-class, Titanium efficiency
  • AC input with power factor correction
  • Hot-plug capable
  • Parallel operation with active current sharing thru analog bus
  • Full digital controls for improved performance
  • I2C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader

Email Form

The TET3200 Series is a 3200 Watt AC-DC power-factor-corrected (PFC) or DC/DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The TET3200-12-069xA meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Universal input voltage range: 90-300 VAC
  • DC input voltage range: 180-410 VDC
  • High density design: 33.8 W/in3
  • Small form factor: 69 x 40.5 x 555 mm
  • 2 Status LEDs: AC OK and DC OK with fault signaling

Features

  • Best-in-class, Titanium efficiency
  • AC input with power factor correction
  • Hot-plug capable
  • Parallel operation with active current sharing thru analog bus
  • Full digital controls for improved performance
  • I2C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader
