PFE3600 (AC-DC/HVDC)

Share

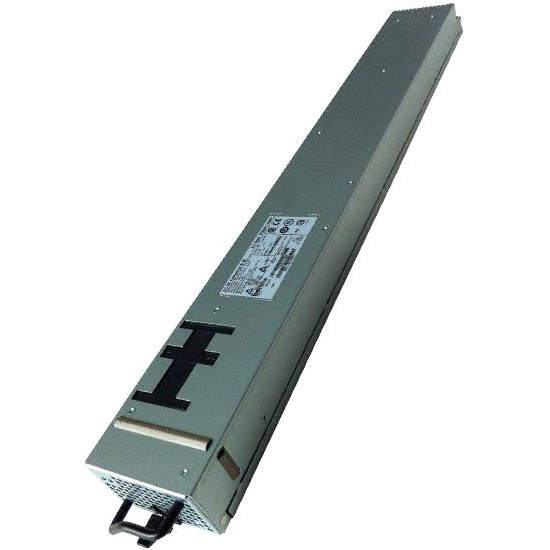

The PFE3600-12-069RA is a 3600 Watt AC/DC power-factorcorrected (PFC) and DC-DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The PFE3600-12-069RA meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Wide input voltage range: 90-300 VAC
  • AC input with power factor correction
  • DC input voltage range: 192-400 VDC
  • Small form factor: 69 x 42 x 555 mm
  • High density design: 37 W/in3
  • RoHS Compliant

Features

  • Best-in-class, Platinum efficiency
  • Hot-plug capable
  • Over-temperature, output over-voltage and over-current protection
  • I2C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader

Datasheets and Drawings

Email Form

The PFE3600-12-069RA is a 3600 Watt AC/DC power-factorcorrected (PFC) and DC-DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The PFE3600-12-069RA meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Wide input voltage range: 90-300 VAC
  • AC input with power factor correction
  • DC input voltage range: 192-400 VDC
  • Small form factor: 69 x 42 x 555 mm
  • High density design: 37 W/in3
  • RoHS Compliant

Features

  • Best-in-class, Platinum efficiency
  • Hot-plug capable
  • Over-temperature, output over-voltage and over-current protection
  • I2C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader
