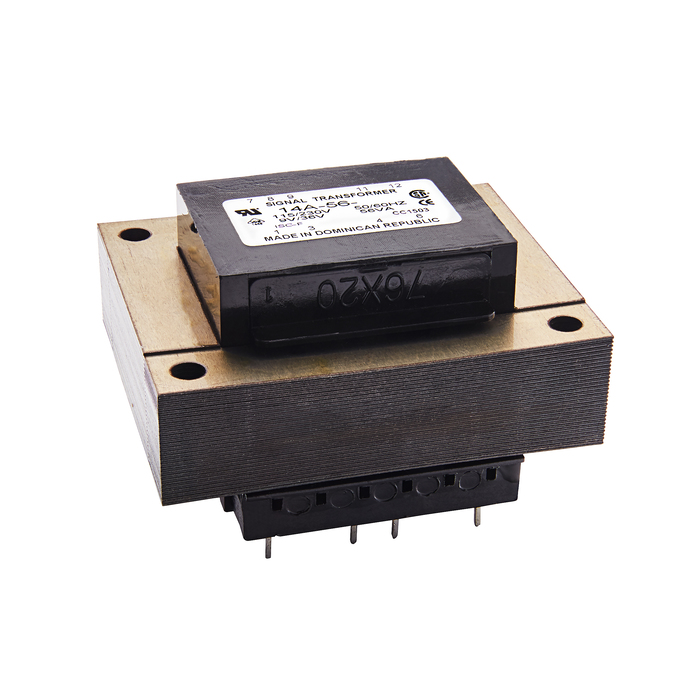

14A-56-36 Single Phase Transformers

International One-4-All Transformer, 56 VA Power, 115 V / 230 V Input, 18 V Output Parallel, 36 VCT Output Series, Through Hole Mount

Stock Check

Request Quote
Explore Custom Magnetic Solutions Discover how we tailor transformers, chokes, coils, and inductors to meet your application needs—electrically, mechanically, and with full engineering support.
Request Customization

Features & Specifications

Power (VA) 56
RoHS Compliant Yes
Voltage - Primary (V) 115/230
Brand Signal Transformer
Frequency (Hz) 50/60
Dielectric Strength (Vrms) 4000
Mounting Type Through Hole Mount
Insulation Class Class F, 155ºC
Weight lbs (kg) 1.7 (0.77)
Dimensions L x W x H (in) 3 x 2.5 x 1.81
Dimensions L x W x H (mm) 76.2 x 63.5 x 46
Voltage - Secondary Series 36VCT
Safety Standards 62368, UL 5085
Safety Approvals CSA, UL, VDE
Voltage - Secondary Parallel 18V
