SPSPFF3-01
Power Shelves & Racks

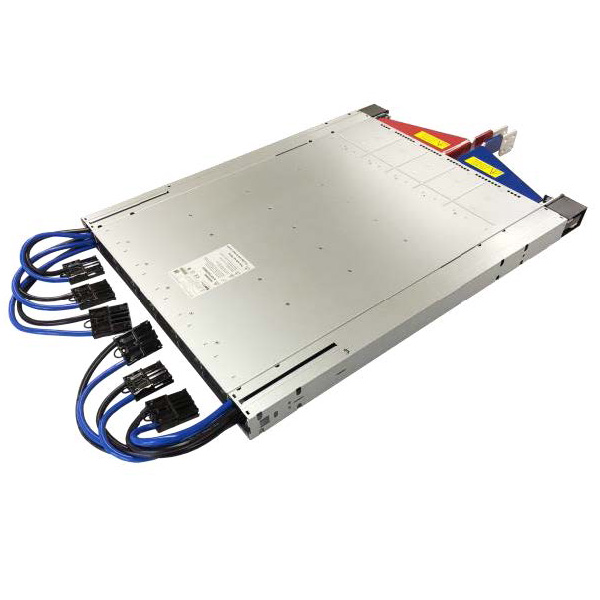

DC-DC Power Shelf | Power 14400W (8700W) | Two -40 to -72 VDC inputs (nominal -48 VDC) | 1 Set of Output Blade for +12.5 VDC output | Offset Bus Bar
Stock Check
Country - USA
Features & Specifications
| Product Type | DC-DC |
| Power (W) | 14400 |
| Input Voltage Range (VDC) | -40 ~ -72 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 1171 |
| Operating Temperature Range (ºC) | 0 ~ +55 |
| Dimensions LxWxH (mm) | 650x534.5x46.5 |
| Input Configuration | 1-Phase |
| Configuration (max no. of PSUs) | 5+1, 3+3 |
| No. of Output Busbars | 1 (Offset Short) |
| NAC Included | No |
| Isolated | Yes |
| RoHS Compliant | Yes |
| Brand | Bel |
Compatible Products with SPSPFF3-01
Product Relationship
Accessories
SPSPFE3-BP01G
Power Rack Blanking Panel for 1OpenU Power Shelves | Non-corrosive | Easy assembly | Low weight | Fully safe
View Product
Accessories
YSU.00225
DC Power Distribution Unit (PDU) is used for -48 VDC power distribution. Designed to supply a SPSPFF3-01 shelf (-48 VDC input shelf).
View Product
Related Products
PFF3000-12-069RD
Front End DC-DC Power Supply | Power 3000W | Output 12VDC, 244A | Input -40 to -72VDC | Reverse Airflow
View Product
