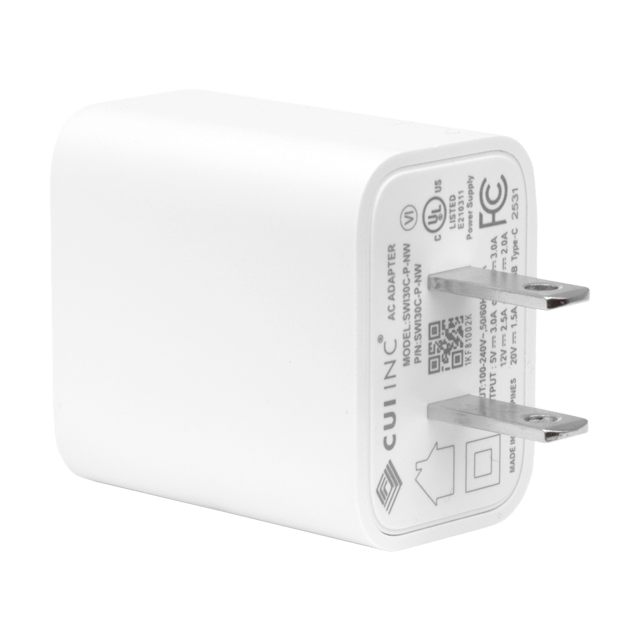

SWI30C-N Series
Specifications
- Power (W): 30
- Output Voltage (VDC): 5 ~ 20
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +40
- Dimensions L x W x H (in): 1.66 x 1.53 x 0.98
- Dimensions L x W x H (mm): 42.4 x 39 x 25
- Blade Type: Fixed Blade
- DC Plug Type: USB Type C
- Safety Standards: 62368
- Safety Approvals: UL/cUL
- Protections: Over Current, Over Voltage, Short Circuit
- RoHS Compliant: Yes
Features

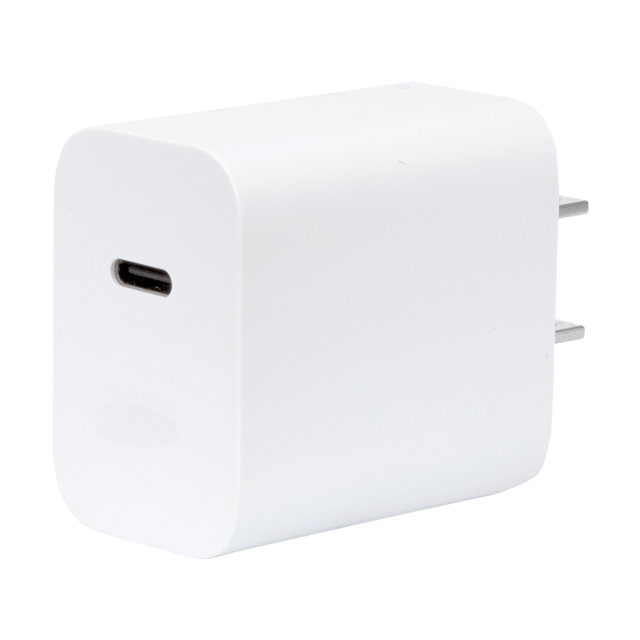

- Integrated USB Type C receptacle
- USB Power Delivery (PD) 3.0 compliant
- Over current protection (OCP)
- Short circuit protection (SCP)
- Over voltage protection (OVP)
- Customization available

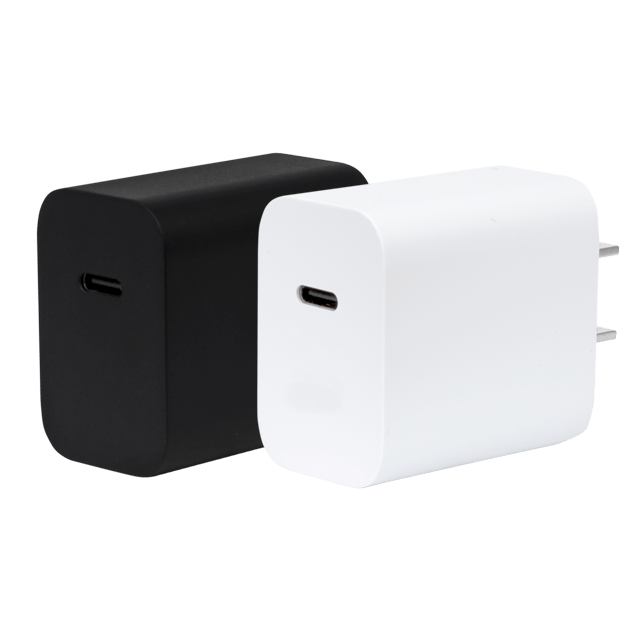

- Black and White options available
