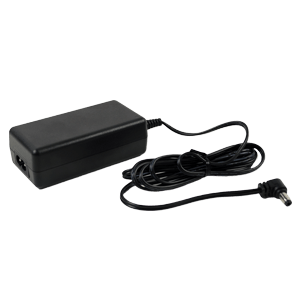

SDM36-UD Series
7 Products
| Model Series | 3D Model | Power (W) | Input Voltage Range (VAC) | Output Voltage (VDC) | Output Current (A) | Operating Temperature Range (ºC) | Efficiency Standards | Adapter Technology | Features |
|---|---|---|---|---|---|---|---|---|---|
SDM36-5-UDIn stock
|
|
|
25 | 90 ~ 264 | 5 | 5 | 0 ~ +40 | Level VI | Standard | LED Indicator, 2xMOPP |
SDM36-7.5-UDIn stock
|
|
|
30 | 90 ~ 264 | 7.5 | 4 | 0 ~ +40 | Level VI | Standard | LED Indicator, 2xMOPP |
SDM36-9-UDIn stock
|
|
|
36 | 90 ~ 264 | 9 | 4 | 0 ~ +40 | Level VI | Standard | LED Indicator, 2xMOPP |
SDM36-12-UDIn stock
|
|
|
36 | 90 ~ 264 | 12 | 3 | 0 ~ +40 | Level VI | Standard | LED Indicator, 2xMOPP |
SDM36-15-UDIn stock
|
|
|
36 | 90 ~ 264 | 15 | 2.4 | 0 ~ +40 | Level VI | Standard | LED Indicator, 2xMOPP |
SDM36-18-UDIn stock
|
|
|
36 | 90 ~ 264 | 18 | 2 | 0 ~ +40 | Level VI | Standard | LED Indicator, 2xMOPP |
SDM36-24-UDIn stock
|
|
|
36 | 90 ~ 264 | 24 | 1.5 | 0 ~ +40 | Level VI | Standard | LED Indicator, 2xMOPP |
Loading more products . . .
Technical Resources & Documents
Drawings & Datasheets
Safety Certificates
Tech Resources
Specifications
- Power (W): 25 ~ 36
- Output Voltage (VDC): 5 ~ 24
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +40
- AC Inlet Type: 2 Prong (C8)
- Input Cable Region: Europe, No Cable, North America
- Adapter Technology: Standard
- Safety Standards: 60601
- Safety Approvals: CE, FCC, PSE, TUV, UKCA, UL/cUL
- Protections: Over Current, Over Voltage, Short Circuit
- RoHS Compliant: Yes
Features
- No-load power consumption < 0.1 W
- 60601-1-2 4th edition EMC collateral standard approvals
- Designed for 2 x MOPP applications
- LED indicator for power on
