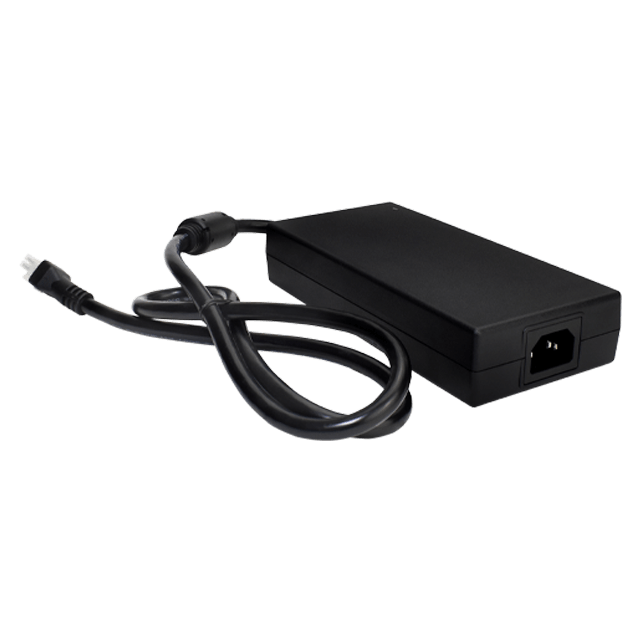

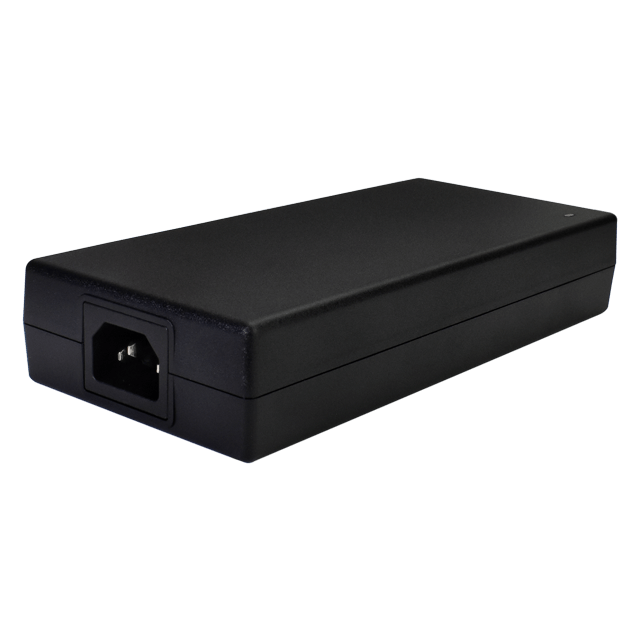

The SDM300G-U series is a 300 W medical grade desktop ac-dc power supply with C14 inlet certified to the medical 60601-1 edition 3.1 safety standards for MOPP applications and 4th edition EMC requirements. Featuring compact size and Level VI efficiency, these medical power supplies utilize GaN technology and are a continuation of CUI's initiative to provide customers with global solutions for medical equipment.
Features
  • Gallium nitride (GaN) Technology
Specifications
  • Power (W): 288 ~ 300
  • Output Voltage (VDC): 12 ~ 48
  • Input Voltage Range (VAC): 85 ~ 264
  • Operating Temperature Range (ºC): -20 ~ +40, 0 ~ +40
  • AC Inlet Type: 3 Prong (C14)
  • Input Cable Region: No Cable
  • Safety Standards: 60601
  • Safety Approvals: CE, FCC, PSE, UKCA, UL/cUL
  • Protections: Over Current, Over Temperature, Over Voltage
  • RoHS Compliant: Yes
Customize Your Power Adapter From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
Request Customization
