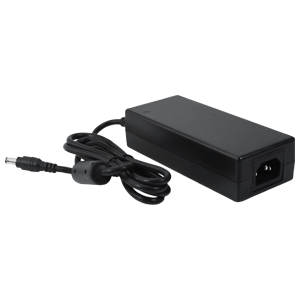

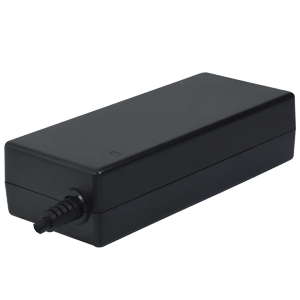

The SDM120-U series is a 120 W medical desktop ac-dc power supply with C14 inlet certified to the medical 60601-1 edition 3.1 safety standards for MOPP applications and 4th edition EMC requirements. Featuring compact size and Level VI efficiency, these medical power supplies are a continuation of CUI's initiative to provide customers with global solutions for medical and dental equipment.
Features
  • No-load power consumption < 0.21 W
  • LED indicator for power on
Specifications
  • Power (W): 110 ~ 130
  • Output Voltage (VDC): 12 ~ 48
  • Input Voltage Range (VAC): 90 ~ 264
  • Operating Temperature Range (ºC): 0 ~ +40

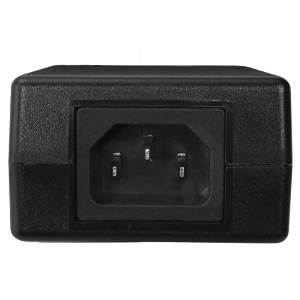

  • AC Inlet Type: 3 Prong (C14)
  • Input Cable Region: No Cable
  • Safety Standards: 60601
  • Safety Approvals: CE, FCC, TUV, UL/cUL
  • Protections: Over Current, Over Voltage, Short Circuit
  • RoHS Compliant: Yes
