SDM100G-P-U-C Power Supplies Desktop & Wall Plug Adapters Desktop Adapters
SDM100G-P-U-C Power Supplies Desktop & Wall Plug Adapters Desktop Adapters
SDM100G-P-U-C Power Supplies Desktop & Wall Plug Adapters Desktop Adapters
3D model icon 3D View
left chevron icon right chevron icon
New Product
Medical Certification Medical

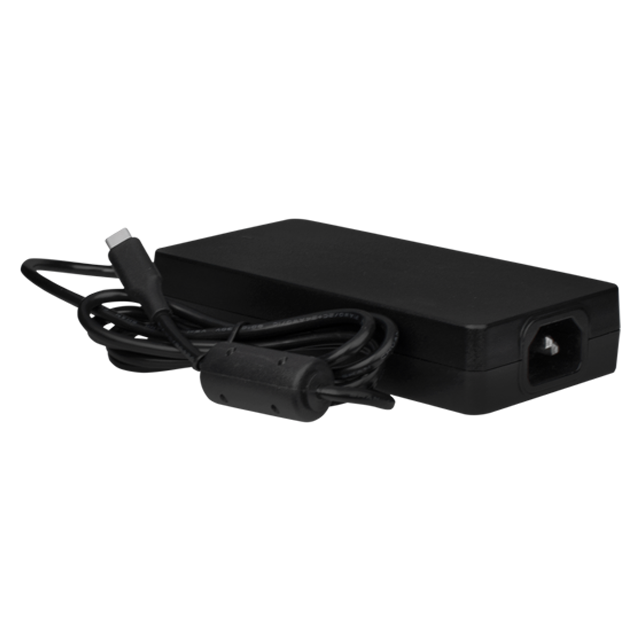

SDM100G-P-U-C Desktop Adapters

100 W USB Power Delivery desktop with a 3 Prong (C14) AC inlet and USB-C DC connector, 5 V, 9 V, 12 V, 15 V at 3 A or 20 V at 5 A, GaN Technology, Without input cable, Black

Stock Check

Request Quote
Customize Your Power Supply From branding, mechanical, and electrical modifications to regulatory assistance, let us help you today.
Request Customization

Features & Specifications

Power (W) 100
Number of Outputs 5
Output Voltage (VDC) 12, 15, 20, 5, 9
Output Current (A) 3, 5
Input Voltage Range (VAC) 90 ~ 264
Operating Temperature Range (ºC) 0 ~ +40
Dimensions L x W x H (in) 5.35 x 2.68 x 1
Dimensions L x W x H (mm) 136 x 68 x 25.4
Efficiency Standards Level VI
AC Inlet Type 3 Prong (C14)
Input Cable Region No Blade
DC Plug Type USB Type C
Plug Angle Straight
Color Black
Adapter Technology GaN
Market Medical
Safety Standards 60601
Safety Approvals CE, FCC, TUV, UKCA, UL/cUL
Protections Over Current, Over Voltage, Short Circuit
Features 2xMOPP, GaN
RoHS Compliant Yes
Brand CUI
