SDI160-U Series
Specifications
- Power (W): 150 ~ 160
- Output Voltage (VDC): 12 ~ 56
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +40

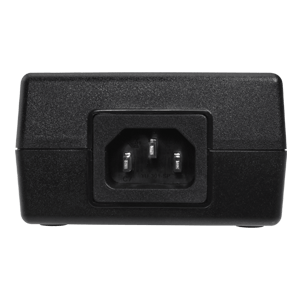

- AC Inlet Type: 3 Prong (C14)
- Input Cable Region: No Cable
- Adapter Technology: Standard
- Safety Standards: 62368
- Safety Approvals: CE, FCC, UKCA, UL/cUL
- Protections: Over Current, Over Voltage, Short Circuit
- RoHS Compliant: Yes
Features
- Power factor correction (PFC)
Loading more products . . .
Compatible Products with SDI160-U Series
Option
SDI160G-U Series
Thanks to GaN technology, the powerful SDI160G-U series offers no-load power consumption as low as 0.15 W and meets the current US DoE Level VI efficiency standards, in addition to the new IEC 62368-1 standards for ICT and AV equipment. Featuring up to a 200% increase in power density, the SDI160G-U series is a 160 W desktop AC-DC power supply with C14 inlet offering fast, efficient power in a compact package.
View Product
