New Product

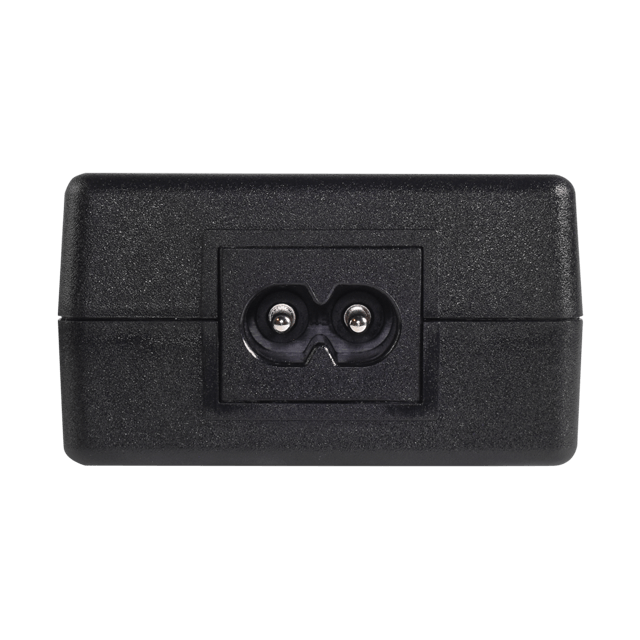

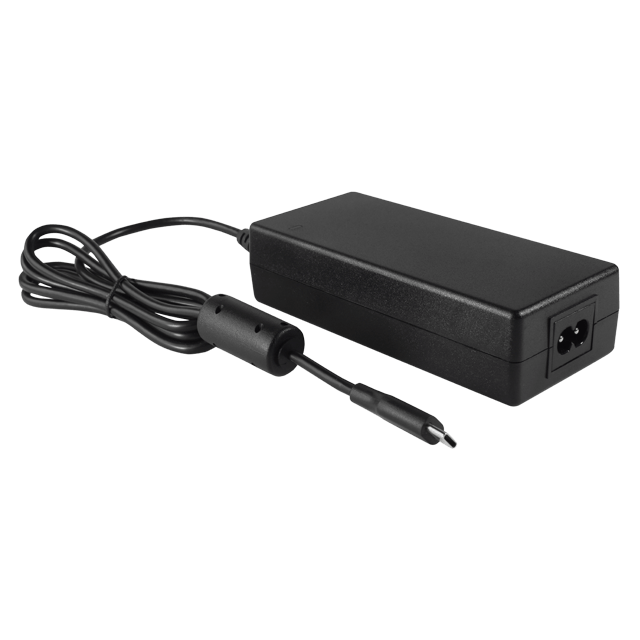

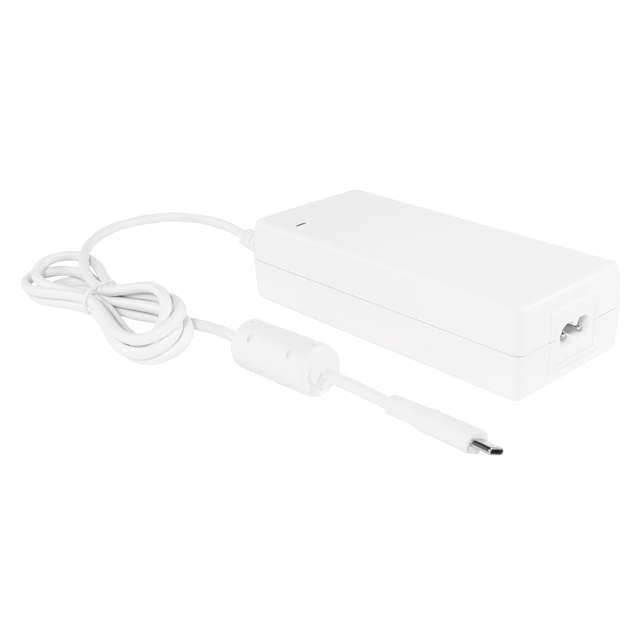

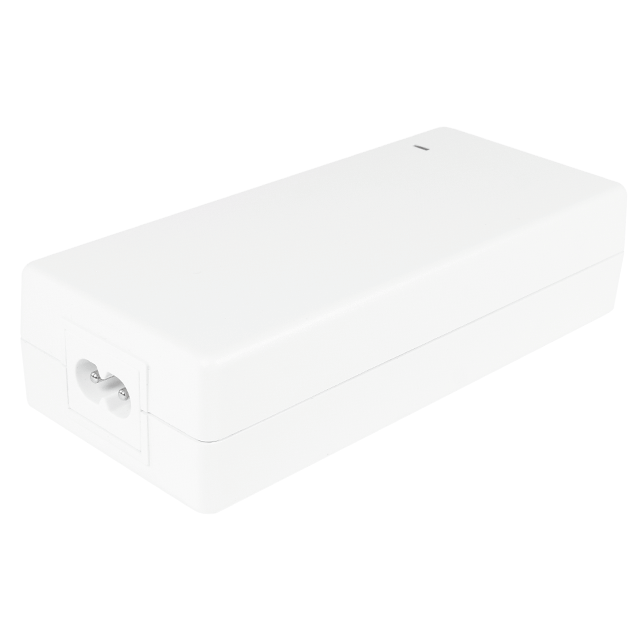

SDI100-D Series
Features
- Level VI efficiency
- USB power delivery (PD 3.0)
- IEC320/C8 AC inlet
- Over voltage, over current, and short circuit protection
- Custom designs available
Specifications
- Power (W): 100
- Output Voltage (VDC): 5 ~ 20
- Input Voltage Range (VAC): 90 ~ 264
- Operating Temperature Range (ºC): 0 ~ +40
- AC Inlet Type: 2 Prong (C8)
- Input Cable Region: Europe, No Cable, North America
- Safety Standards: 62368
- Safety Approvals: CE, FCC, PSE, UL/cUL
- Protections: Over Current, Over Voltage, Short Circuit
- RoHS Compliant: Yes
