YM12S05 Series
YM12S05 Series

YM12S05 Series

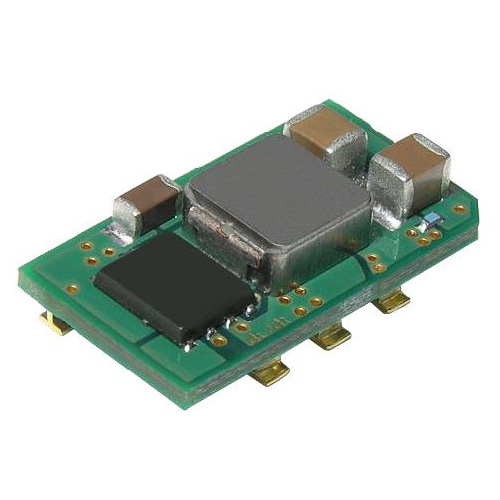

Bel Power Solutions point-of-load converters are recommended for use with regulated bus converters in an Intermediate Bus Architecture (IBA). The YM12S05 nonisolated DC-DC converters deliver up to 5A of output current in an industry-standard surface-mount package. Operating from a 9.6-14 VDC input, the YM12S05 converters are ideal choices for Intermediate Bus Architectures where Point-of-Load power (POL) delivery is generally a requirement. They provide an extremely tight regulated programmable output voltage of 0.7525 V to 5.5 V.
Features
  • RoHS lead free and lead-solder-exempted products are available
  • Synchronous Buck Converter topology
  • Start-up into pre-biased output
  • Programmable output voltage via external resistor
  • Auto-reset output overcurrent protection and overtemperature protection
Specifications
  • Power (W): 28
  • Input Voltage Range (VDC): 9.6 ~ 14
  • Output Voltage (VDC): 0.7525 ~ 5.5
  • Operating Temperature Range (ºC): -40 ~ +85
  • Isolation (VDC): 0
  • Isolated: No
  • Safety Standards: 62368
  • Safety Approvals: CB, Nemko
  • RoHS Compliant: Yes
